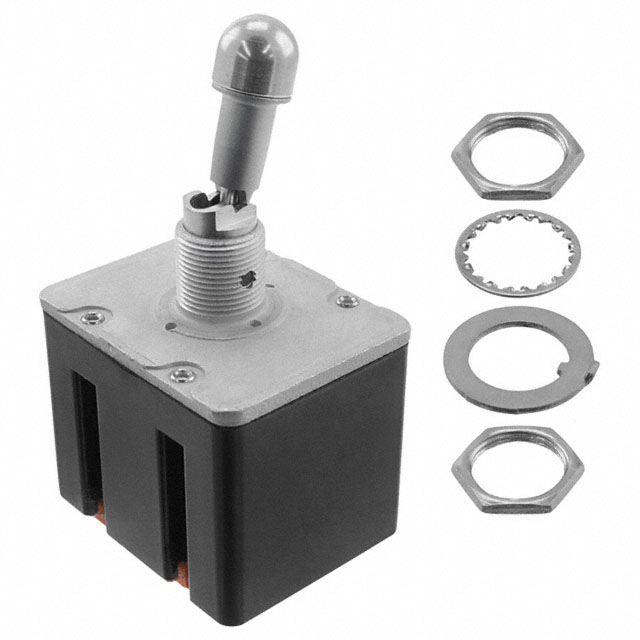

104TL2-1N

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE 4PDT 7.5A 115V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE 4PDT 7.5A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	104TL2-1N

Actuator Length [x]	26.67 mm
Actuator Material	Nickel Plated
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Circuit	4PDT
Current Rating (Amps)	7.5 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-Off-On
Termination Style	IWTS
Voltage Rating - AC	115 V
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Termination Style	Circuit	Voltage Rating - DC	Bushing Thread	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Ingress Protection	Actuator Material	Actuator Length [x]	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC
Honeywell Sensing and Productivity Solutions 104TL2-7	7.5 A	IWTS	4PDT	30 V	15/32-32	Mom-Off-Mom	71 °C	-65 ░C	Non-Illuminated	Environment Sealed	Nickel Plated	17.27 mm	Standard Round	12.4 mm	115 V
Honeywell Sensing and Productivity Solutions 104TL2-1N	7.5 A	IWTS	4PDT	30 V	15/32-32	On-Off-On	71 °C	-65 ░C	Non-Illuminated	Environment Sealed	Nickel Plated	26.67 mm	Locking Lever	12.4 mm	115 V
Honeywell Sensing and Productivity Solutions 104TL2-3D	7.5 A	IWTS	4PDT	30 V	15/32-32	On-On	71 °C	-65 ░C	Non-Illuminated	Environment Sealed	Nickel Plated	26.67 mm	Locking Lever	12.4 mm	115 V
Honeywell Sensing and Productivity Solutions 104TL286-7E	7.5 A	IWTS	4PDT	30 V	15/32-32	Mom-Off-Mom	71 °C	-65 ░C	Non-Illuminated	Environment Sealed	Nickel Plated	26.67 mm	Locking Lever	12.4 mm	115 V
Honeywell Sensing and Productivity Solutions 104TL2-10A	7.5 A	IWTS	4PDT	30 V	15/32-32	On-On-On	71 °C	-65 ░C	Non-Illuminated	Environment Sealed	Nickel Plated	26.67 mm	Locking Lever	12.4 mm	115 V
Honeywell Sensing and Productivity Solutions 104TL2-2	7.5 A	IWTS		30 V	15/32-32	On-Off	71 °C	-65 ░C	Non-Illuminated	Environment Sealed	Nickel Plated	17.27 mm	Standard Round	12.4 mm	115 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 338.17

General part information

Toggle Switch 4PDT Panel Mount
