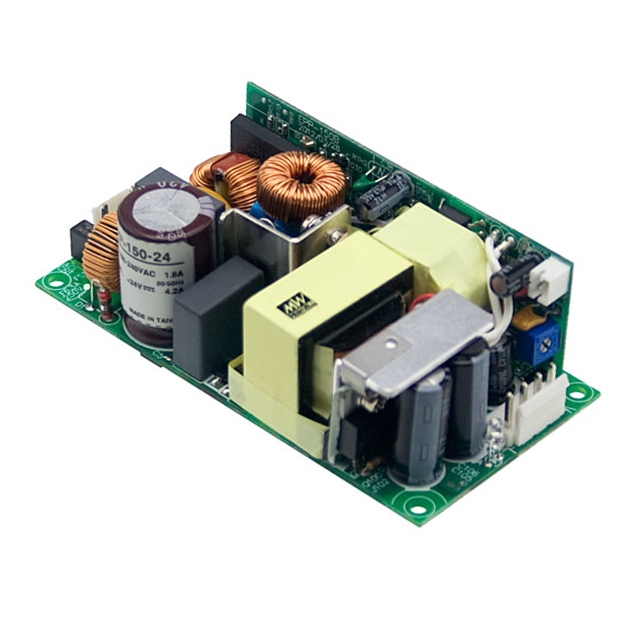

EPP-150-27
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 27V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPP-150-27 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 3.71 A |
| Efficiency | 92 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 150 W |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 29 mm, 1.14 in |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 27 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.56 | |
| 5 | $ 41.98 | |||
| 10 | $ 40.91 | |||
| 25 | $ 39.55 | |||
Description
General part information
EPP-150 Series
Open Frame AC DC Converters 1 Output 27V 90 ~ 264 VAC, 127 ~ 370 VDC Input
