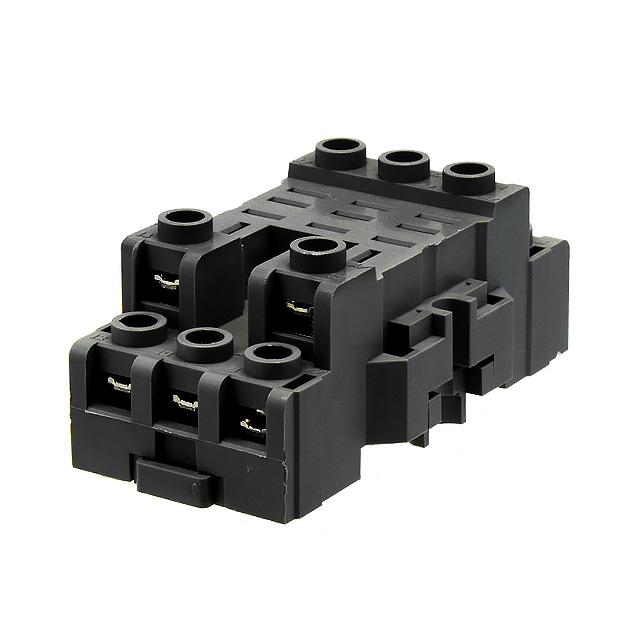

SH3B-05C

Active

IDEC

RELAY SOCKET, DIN RAIL, SCREW, 11 PINS, 10 A, 300 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

SH3B-05C

Active

IDEC

RELAY SOCKET, DIN RAIL, SCREW, 11 PINS, 10 A, 300 V

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SH3B-05C

Features	Finger-Safe (IP20) Terminals
For Use With/Related Products	RH Series
Mounting Type	DIN Rail
Number of Positions	11
Termination Style	Screw Terminal
Type	Socket

SH3B Series

Part	Type	Termination Style	Mounting Type	Features	Number of Positions	For Use With/Related Products
IDEC SH3B-05C	Socket	Screw Terminal	DIN Rail	Finger-Safe (IP20) Terminals	11	RH Series

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.55
		10	$ 10.09
		25	$ 9.56
		50	$ 9.18
		100	$ 8.81
		250	$ 8.35
		500	$ 8.02
		1000	$ 7.70
Newark	Each	1	$ 12.14
		5	$ 11.84
		10	$ 11.53
		25	$ 10.92
		50	$ 10.32
		100	$ 9.71

Description

General part information

SH3B Series

The SH3B-05C is a 11-pin finger-safe Relay Socket with screw terminals. Suitable for use with RH3B, RH2LB relays and blade terminal model. The compact midget size of this socket saves space and is ideal for snap-mount/surface mounting.
