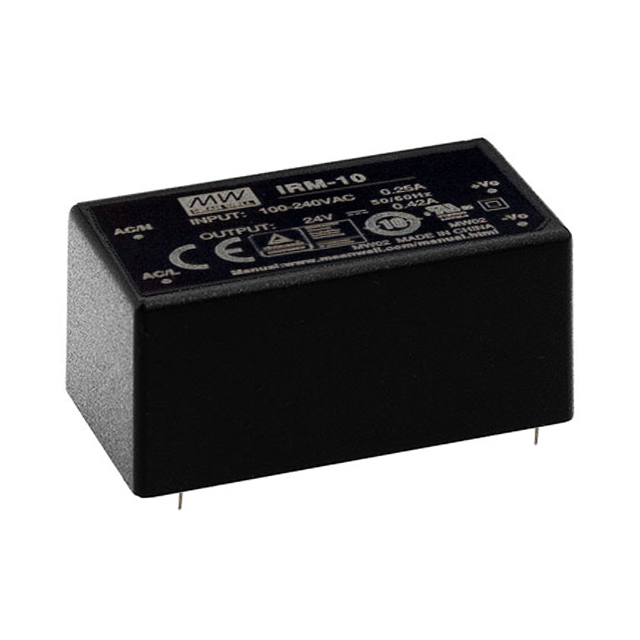

IRM-10-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 10W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Number of Outputs	Line Regulation	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Power (Watts)	Voltage - Output 1	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Features	Load Regulation	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency
MEAN WELL USA Inc. IRM-10-12	CB CE cURus EAC TUV	1	0.3 %	Through Hole	850 mA	1.8 "	21.5 mm	0.85 "	45.7 mm	25.4 mm	25.4 mm	4-DIP Module	10 W	12 V	ITE (Commercial)	85 VAC 120 VDC	305 VAC 430 VDC	Universal Input	0.5 %	Enclosed	70 °C	-30 °C
MEAN WELL USA Inc. IRM-10-5	CB CE cURus EAC TUV	1	0.3 %	Through Hole	2 A	1.8 "	21.5 mm	0.85 "	45.7 mm	25.4 mm	25.4 mm	4-DIP Module	10 W	5 V	ITE (Commercial)	85 VAC 120 VDC	305 VAC 430 VDC	Universal Input	0.5 %	Enclosed	70 °C	-30 °C	77 %
MEAN WELL USA Inc. IRM-10-3.3	CB CE cURus EAC TUV	1	0.3 %	Through Hole	2.5 A	1.8 "	21.5 mm	0.85 "	45.7 mm	25.4 mm	25.4 mm	4-DIP Module	8.25 W	3.3 V	ITE (Commercial)	85 VAC 120 VDC	305 VAC 430 VDC	Universal Input	0.5 %	Enclosed	70 °C	-30 °C	74 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 850mA 85 ~ 305 VAC, 120 ~ 430 VDC Input
