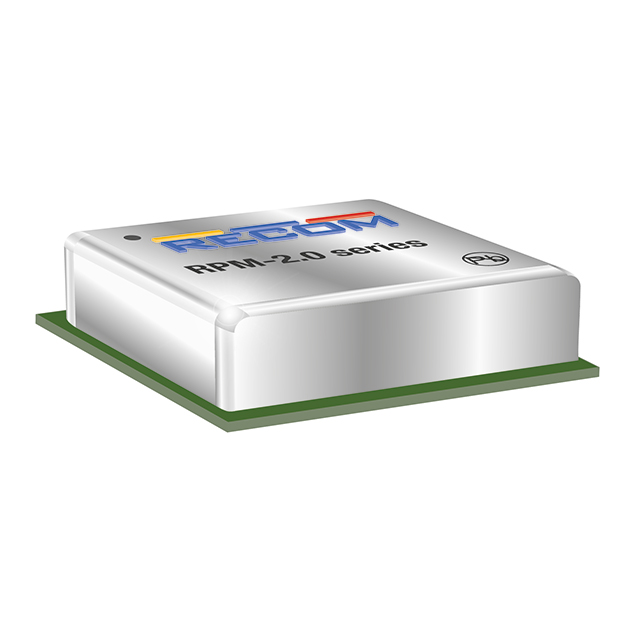

RPM3.3-2.0-CT

Active

RECOM Power

NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 1 OUTPUT, 6.6 W, 3.3 V, 2 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RPM3.3-2.0-CT

Active

RECOM Power

NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 1 OUTPUT, 6.6 W, 3.3 V, 2 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPM3.3-2.0-CT

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2 A
Efficiency	98 %
Features	OTP, UVLO, SCP, Remote On/Off, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	25-BLGA Module
Size / Dimension [x]	12.2 mm
Size / Dimension [x]	0.48 in
Size / Dimension [y]	0.48 in
Size / Dimension [y]	12.2 mm
Size / Dimension [z]	0.15 "
Size / Dimension [z]	3.8 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	17 V
Voltage - Input (Min) [Min]	3 V
Voltage - Output 1	3.3 V

RPM3.3-2.0 Series

Part	Features	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Number of Outputs	Applications	Type	Voltage - Input (Min) [Min]
RECOM Power RPM3.3-2.0-CT	OCP OTP Remote On/Off SCP UVLO	2 A	25-BLGA Module	17 V	-40 °C	105 C	3.3 V	98 %	0.48 in	0.15 "	12.2 mm	0.48 in	3.8 mm	12.2 mm	Surface Mount	1	ITE (Commercial)	Non-Isolated PoL Module	3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.20
		5	$ 6.12
		10	$ 6.03
		25	$ 5.85
		50	$ 5.67
		100	$ 5.49
		250	$ 5.32
		500	$ 4.96
Newark	Each	1	$ 9.24
		100	$ 7.55
		250	$ 6.92
		500	$ 6.43
		1000	$ 6.04

Description

General part information

RPM3.3-2.0 Series

RPM-2.0 series is a 2A single output non-isolated switching regulator power module with a full set of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of only 0.147", but with an efficiency of up to 98%, the device can operate at full load in ambient temperatures as high as +105°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.
