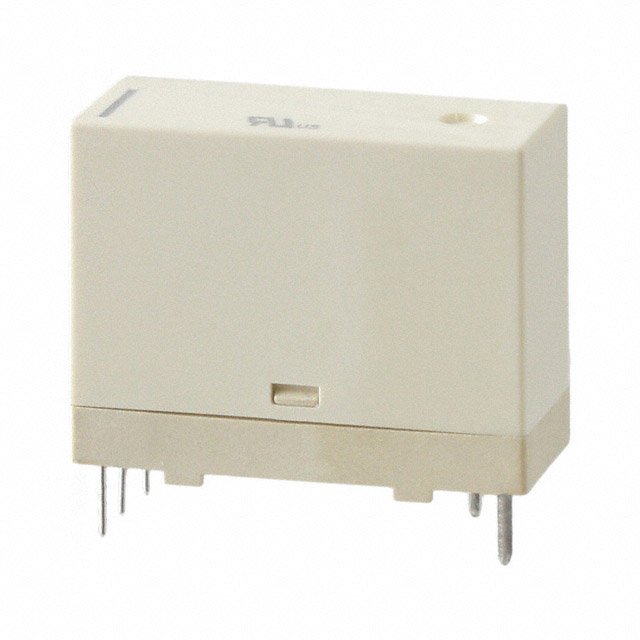

ADW1206W

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 8A 6V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

ADW1206W

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 8A 6V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADW1206W

Approval Agency	CQC, VDE, cURus
Coil Current	66.7 mA
Coil Insulation	Class F
Coil Resistance	90 Ohms
Coil Type	Latching, Dual Coil
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	8 A
Load - Max Switching	2000 VA
Mounting Type	Through Hole
Must Operate Voltage	4.8 VDC
Operate Time	15 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	15 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	250 VAC
Termination Style	PC Pin

ADW120 Series

Part	Approval Agency	Load - Max Switching	Release Time	Operate Time	Contact Rating (Current)	Features	Mounting Type	Coil Type	Coil Current	Switching Voltage	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Voltage	Seal Rating	Coil Resistance	Coil Insulation	Contact Form	Contact Material	Must Operate Voltage	Switching Voltage [Max]
Panasonic Electric Works ADW1205TW	CQC cURus VDE	2000 VA	15 ms	15 ms	8 A	IEC Compliant	Through Hole	Latching Dual Coil	80 mA	250 VAC	General Purpose	85 °C	-40 °C	PC Pin	5 VDC	Sealed - Flux Protection	62.5 Ohms	Class F	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	4 VDC
Panasonic Electric Works ADW1206HTW	CQC cURus VDE	4432 VA	15 ms	15 ms	16 A	IEC Compliant	Through Hole	Latching Dual Coil	66.7 mA		General Purpose	85 °C	-40 °C	PC Pin		Sealed - Flux Protection	90 Ohms	Class F	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	4.8 VDC	277 VAC
Panasonic Electric Works ADW1206HLW	CQC cURus VDE	4432 VA	15 ms	15 ms	16 A		Through Hole	Latching Dual Coil	66.7 mA		General Purpose	85 °C	-40 °C	PC Pin		Sealed - Flux Protection	90 Ohms	Class F	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	4.8 VDC	277 VAC
Panasonic Electric Works ADW1209HT	CQC cURus VDE	4432 VA	15 ms	15 ms	16 A	IEC Compliant	Through Hole	Latching Dual Coil	44.4 mA		General Purpose	85 °C	-40 °C	PC Pin	9 VDC	Sealed - Flux Protection	203 Ohms	Class F	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	7.2 VDC	277 VAC
Panasonic Electric Works ADW1205HT	CQC cURus VDE	4432 VA	15 ms	15 ms	16 A	IEC Compliant	Through Hole	Latching Dual Coil	80 mA		General Purpose	85 °C	-40 °C	PC Pin	5 VDC	Sealed - Flux Protection	62.5 Ohms	Class F	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	4 VDC	277 VAC
Panasonic Electric Works ADW1206W	CQC cURus VDE	2000 VA	15 ms	15 ms	8 A		Through Hole	Latching Dual Coil	66.7 mA	250 VAC	General Purpose	85 °C	-40 °C	PC Pin		Sealed - Flux Protection	90 Ohms	Class F	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	4.8 VDC
Panasonic Electric Works ADW1206HT	CQC cURus VDE	4432 VA	15 ms	15 ms	16 A	IEC Compliant	Through Hole	Latching Dual Coil	66.7 mA		General Purpose	85 °C	-40 °C	PC Pin		Sealed - Flux Protection	90 Ohms	Class F	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	4.8 VDC	277 VAC
Panasonic Electric Works ADW1209TW	CQC cURus VDE	2000 VA	15 ms	15 ms	8 A	IEC Compliant	Through Hole	Latching Dual Coil	44.4 mA	250 VAC	General Purpose	85 °C	-40 °C	PC Pin	9 VDC	Sealed - Flux Protection	203 Ohms	Class F	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	7.2 VDC
Panasonic Electric Works ADW1203HLW	CQC cURus VDE	4432 VA	15 ms	15 ms	16 A		Through Hole	Latching Dual Coil	133 mA		General Purpose	85 °C	-40 °C	PC Pin		Sealed - Flux Protection	22.5 Ohms	Class F	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	2.4 VDC	277 VAC
Panasonic Electric Works ADW1209W	CQC cURus VDE	2000 VA	15 ms	15 ms	8 A		Through Hole	Latching Dual Coil	44.4 mA	250 VAC	General Purpose	85 °C	-40 °C	PC Pin	9 VDC	Sealed - Flux Protection	203 Ohms	Class F	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)	7.2 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.57
		10	$ 8.98
		25	$ 7.98
		40	$ 7.58
		100	$ 7.18

Description

General part information

ADW120 Series

General Purpose Relay SPST-NO (1 Form A) 6VDC Coil Through Hole
