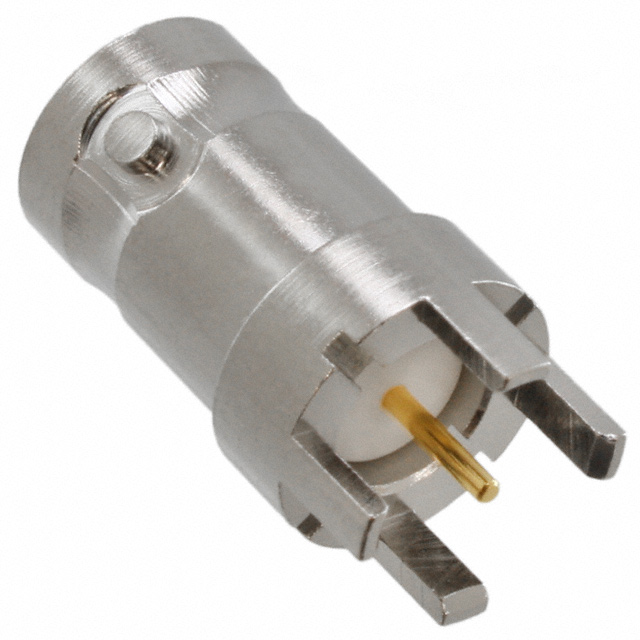

031-5329-52RFX

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	031-5329-52RFX

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Frequency - Max [Max]	Connector Style	Number of Ports	Fastening Type	Contact Termination	Insertion Loss	Housing Color	Mating Cycles	Voltage Rating	Shield Termination	Connector Type	Body Material	Impedance	Body Finish	Mounting Type	Dielectric Material	Center Contact Plating	Center Contact Material
Amphenol RF 031-5329-52RFX	4 GHz	BNC	1	Bayonet Lock	Solder	0.2 dB	Silver	500	500 V	Solder	Female Socket Jack	Brass	50 Ohms	Nickel	Through Hole	Polybutylene Terephthalate (PBT) Polyester	Gold	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Through Hole Solder
