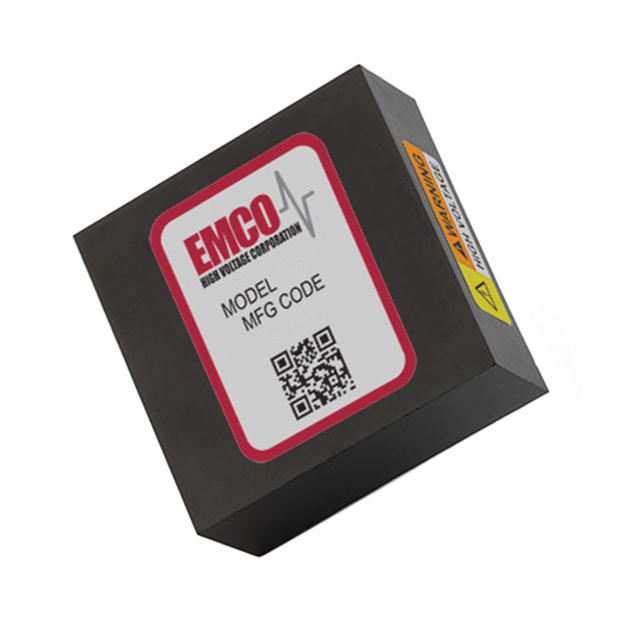

G60CT

Active

XP POWER

DC-DC CONVERTER, 250UA, 3KV, 1.5W

Search across all available documentation for this part.

Active

XP POWER

DC-DC CONVERTER, 250UA, 3KV, 1.5W

Technical Specifications

Parameters and characteristics for this part

Specification	G60CT

Applications	ITE (Commercial)
Current - Output (Max)	250 µA
Current - Output (Max)	250 µA
Features	Proportional Output
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Package / Case	5-DIP Module
Power (Watts)	1.5 W
Size / Dimension [x]	38.1 mm
Size / Dimension [x]	1.5 in
Size / Dimension [y]	1.5 in
Size / Dimension [y]	38.1 mm
Size / Dimension [z]	16 mm
Size / Dimension [z]	0.63 in
Standard Number	62368-1
Type	High Voltage - Isolated Module
Voltage - Input (Max) [Max]	12 V
Voltage - Input (Min) [Min]	0 V
Voltage - Isolation	3.5 kV
Voltage - Output 1	3000 V
Voltage - Output 2	-3000 V

Part	Voltage - Input (Max) [Max]	Voltage - Output 1	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Features	Voltage - Input (Min) [Min]	Mounting Type	Power (Watts)	Voltage - Isolation	Applications	Package / Case	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Number of Outputs	Current - Output (Max)	Current - Output (Max)
XP POWER G60CT	12 V	3000 V	High Voltage - Isolated Module	16 mm	1.5 in	38.1 mm	38.1 mm	0.63 in	1.5 in	Proportional Output	0 V	Through Hole	1.5 W	3.5 kV	ITE (Commercial)	5-DIP Module	-3000 V	-10 °C	60 °C	62368-1	2	250 µA	250 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Voltage - Isolated Module DC DC Converter 2 Output 3000V -3000V 250µA, 250µA 0V - 12V Input
