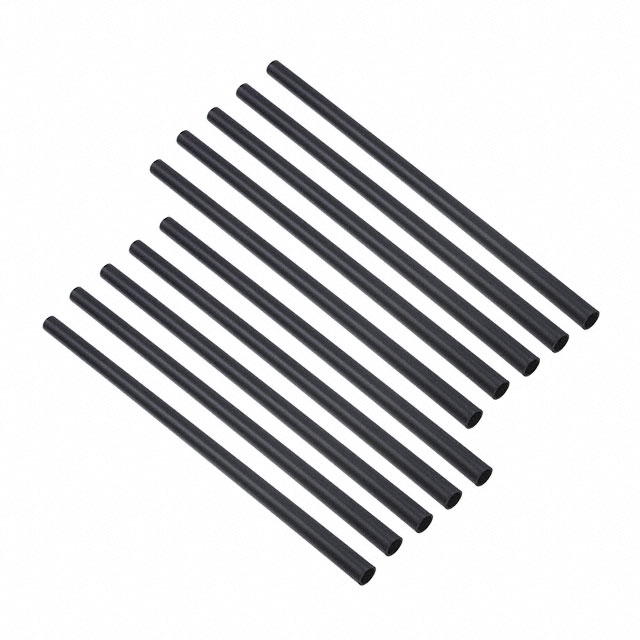

MW-3/16-6"-BLACK-10-10 PC PKS

Active

3M (TC)

HEATSHRINKMULTIWALL 3/16-6" 10PK

Search across all available documentation for this part.

Active

3M (TC)

HEATSHRINKMULTIWALL 3/16-6" 10PK

Technical Specifications

Parameters and characteristics for this part

Specification	MW-3/16-6"-BLACK-10-10 PC PKS

Color	Black
Features	Chemical Resistant, Adhesive Lined, Solvent Resistant
Inner Diameter - Recovered [diameter]	1.52 mm
Inner Diameter - Recovered [diameter]	0.06 in
Inner Diameter - Supplied [diameter]	4.75 mm
Inner Diameter - Supplied [diameter]	0.187 in
Length	152.4 mm
Length	6 "
Length	0.5 '
Material	Polyolefin (PO)
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.043 in
Recovered Wall Thickness	1.09 mm
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	135 C
Shrinkage Ratio [Max]	2.5
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Semi Rigid

Part	Shelf Life	Length	Length	Length	Shrink Temperature	Features	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life Start	Type	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Length [x]	Length [x]
3M (TC) MW-3/16-6"-BLACK-10-10 PC PKS	120 Months	152.4 mm	6 "	0.5 '	135 C	Adhesive Lined Chemical Resistant Solvent Resistant	2.5	1	4.75 mm	0.187 in	Date of Manufacture	Tubing Semi Rigid	0.043 in	1.09 mm	1.52 mm	0.06 in	-55 °C	110 °C	Polyolefin (PO)	Black	27 °C 80 °F	10 °C
3M (TC) MW-3/16-48"-GRAY-250 PCS	120 Months				135 C	Adhesive Lined Chemical Resistant Solvent Resistant	2.5	1	4.75 mm	0.187 in	Date of Manufacture	Tubing Semi Rigid	0.043 in	1.09 mm	1.52 mm	0.06 in	-55 °C	110 °C	Polyolefin (PO)	Gray	27 °C 80 °F	10 °C	1.22 m	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Semi Rigid 0.187" (4.75mm) 2.5 to 1 Black 0.500' (152.40mm, 6.00")
