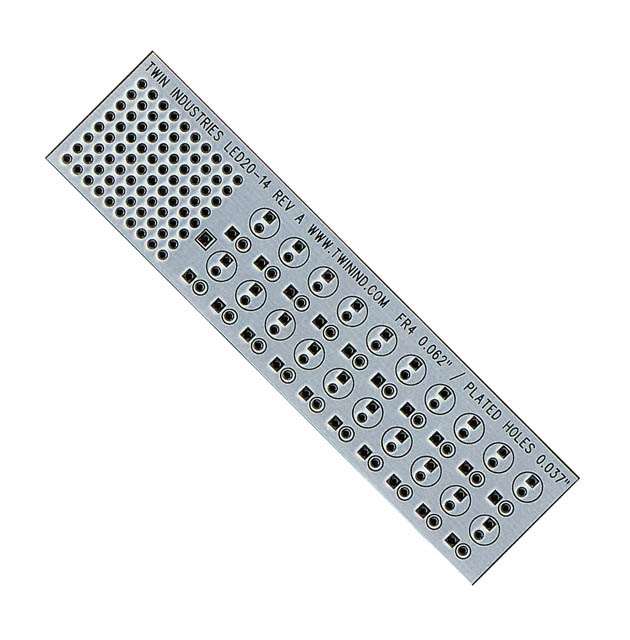

LED20-14
ActiveTWIN INDUSTRIES
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LED20-14
ActiveTWIN INDUSTRIES
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LED20-14 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 0.0625 in |
| Board Thickness | 1.57 mm |
| Circuit Pattern | Common Bus |
| Hole Diameter [diameter] | 0.037 in |
| Hole Diameter [diameter] | 0.94 mm |
| Material | FR4 Epoxy Glass |
| Plating | Plated Through Hole (PTH) |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 6.23 | |
Description
General part information
LED20 Series
Breadboard, General Purpose Plated Through Hole (PTH) Common Bus
