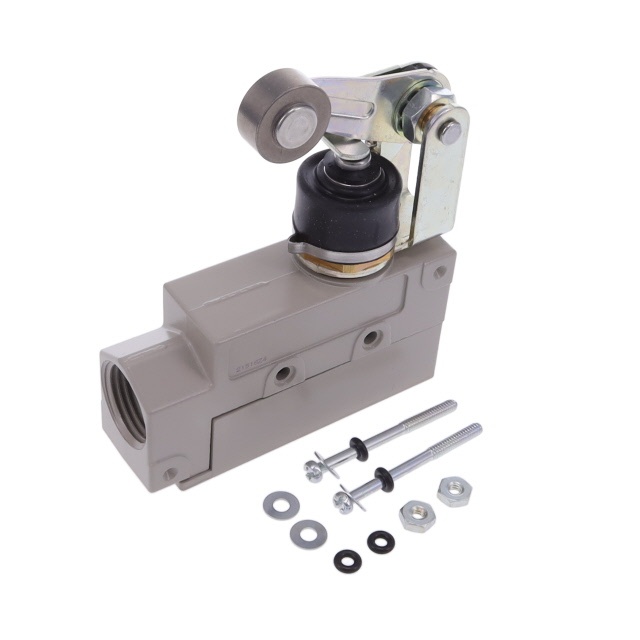

ZE-NA2-2SA

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ZE-NA2-2SA

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	500 mA, 15 A
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	500000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	640 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-10 °C
Overtravel	0.235 in
Overtravel	6 mm
Pretravel	0.197 in
Pretravel	5 mm
Release Force	230 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	Pretravel	Pretravel	Release Force	Circuit	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Overtravel	Overtravel	Operating Force	Actuator Type	Switch Function	Ingress Protection	Electrical Life	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Differential Travel	Differential Travel
Omron Electronics Inc-EMC Div ZE-NA2-2SA	0.197 in	5 mm	230 gf	SPDT	15 A 500 mA	80 C	-10 °C	10000000 Cycles	0.235 in	6 mm	640 gf	Lever Roller	On-Mom	IP65 - Dust Tight Water Resistant	500000 Cycles	Screw Terminal	125 V	125 VDC	Chassis Mount	0.016 "	0.4 mm
