345-006-558-688
ActiveEDAC Inc.

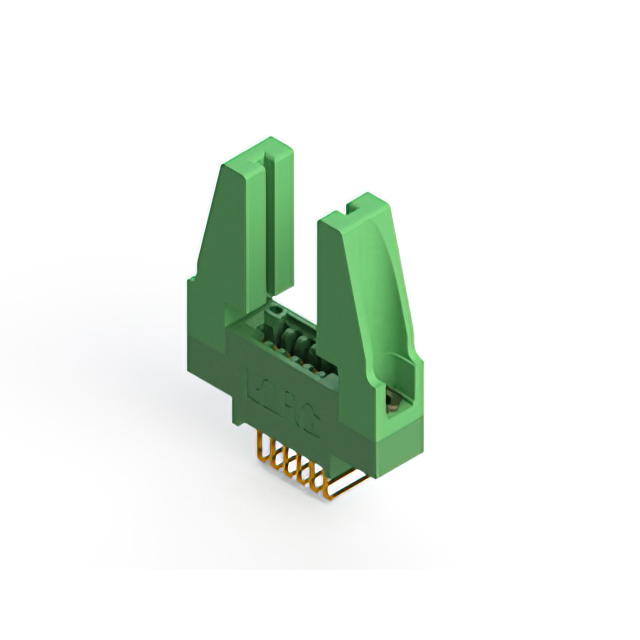

CARD EDGE CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, GUIDE SET, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
345-006-558-688
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, GUIDE SET, GREEN INSULATOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-006-558-688 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-006 Series
...
| Part | Contact Finish | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Gender | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Material - Insulation | Contact Type | Number of Positions | Features | Flange Feature | Contact Material | Card Type | Number of Rows | Color | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Wire Wrap | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Polyester Thermoplastic | Cantilever | 6 | Card Guides | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | 1 | Green | -40 °C | 105 ░C | 1 | ||
EDAC Inc. | Gold | Solder | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Polyester Thermoplastic | Cantilever | 6 | Card Guides | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | 1 | Green | -40 °C | 105 ░C | 1 | ||
EDAC Inc. | Gold | Solder | Through Hole Right Angle | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Polyester Thermoplastic | Cantilever | 6 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Non Specified - Single Edge | 1 | Green | -40 °C | 105 ░C | 1 | |||
EDAC Inc. | Gold | Solder | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Polyester Thermoplastic | Cantilever | 6 | Flush Mount Top Opening Unthreaded | Copper Alloy | Non Specified - Single Edge | 1 | Green | -40 °C | 105 ░C | 1 | 3.25 mm | 0.128 " | |
EDAC Inc. | Gold | Solder | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Polyester Thermoplastic | Cantilever | 6 | Flush Mount Side Opening Unthreaded | Copper Alloy | Non Specified - Single Edge | 1 | Green | -40 °C | 105 ░C | 1 | 3.25 mm | 0.128 " | |
EDAC Inc. | Gold | Wire Wrap | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Polyester Thermoplastic | Cantilever | 6 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Non Specified - Single Edge | 1 | Green | -40 °C | 105 ░C | 1 | |||
EDAC Inc. | Gold | Wire Wrap | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Polyester Thermoplastic | Cantilever | 6 | Floating Bobbin Top Mount Opening | Copper Alloy | Non Specified - Single Edge | 1 | Green | -40 °C | 105 ░C | 1 | 2.95 mm | 0.116 in | |
EDAC Inc. | Gold | Solder | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Polyester Thermoplastic | Cantilever | 6 | Top Mount Opening Unthreaded | Copper Alloy | Non Specified - Single Edge | 1 | Green | -40 °C | 105 ░C | 1 | 3.96 mm | 0.156 in | |
EDAC Inc. | Gold | Wire Wrap | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Polyester Thermoplastic | Cantilever | 6 | Card Guides | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | 1 | Green | -40 °C | 105 ░C | 1 | ||
EDAC Inc. | Gold | Solder | Through Hole Right Angle | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | Polyester Thermoplastic | Cantilever | 6 | Card Guides | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | 1 | Green | -40 °C | 105 ░C | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-006 Series
6 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
