VEC65US19

Active

XP POWER

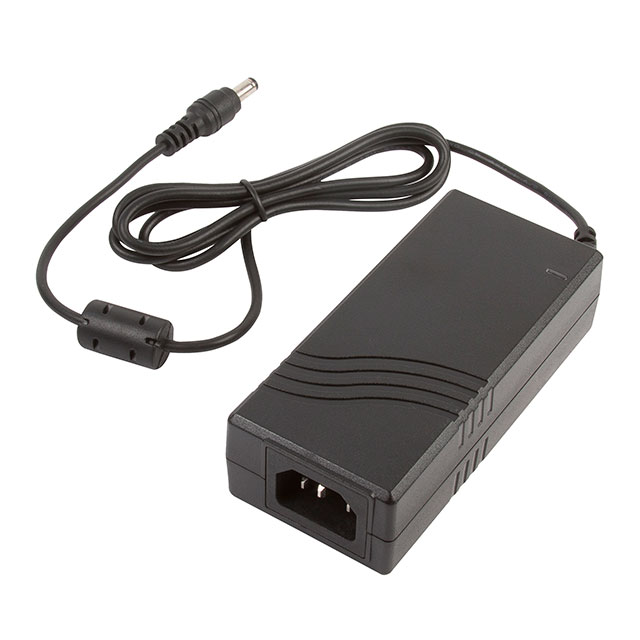

AC/DC DESKTOP ADAPTER 19V 65W

Search across all available documentation for this part.

Active

XP POWER

AC/DC DESKTOP ADAPTER 19V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	VEC65US19

Applications	ITE (Commercial)
Approval Agency	CB, CE, TUV
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	3.42 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	116.3 mm
Size / Dimension [x]	4.58 in
Size / Dimension [y]	52.4 mm
Size / Dimension [y]	2.06 in
Size / Dimension [z]	31.3 mm
Size / Dimension [z]	1.23 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V
Weight	0.6 lb
Weight	272.16 g

Part	Input Connector	Current - Output (Max) [Max]	Power (Watts)	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Applications	Voltage - Output	Cord Length	Cord Length	No Load Power Consumption [Max]	Input Type	Form	Weight	Weight	Efficiency	Polarization	Output Connector	Output Connector [diameter]	Output Connector [x]	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized
XP POWER VEC65US19	IEC 320-C14	3.42 A	65 W	CB CE TUV	90 VAC	264 VAC	31.3 mm	116.3 mm	52.4 mm	4.58 in	2.06 in	1.23 "	62368-1	ITE (Commercial)	19 V	1.2 m	47.2 in	150 mW	Cord	Desktop (Class I)	0.6 lb	272.16 g	CoC Tier 2 Level VI	Positive Center	Barrel Plug	2.5 mm 5.5 mm	11 mm	65 °C	0 °C	International

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
