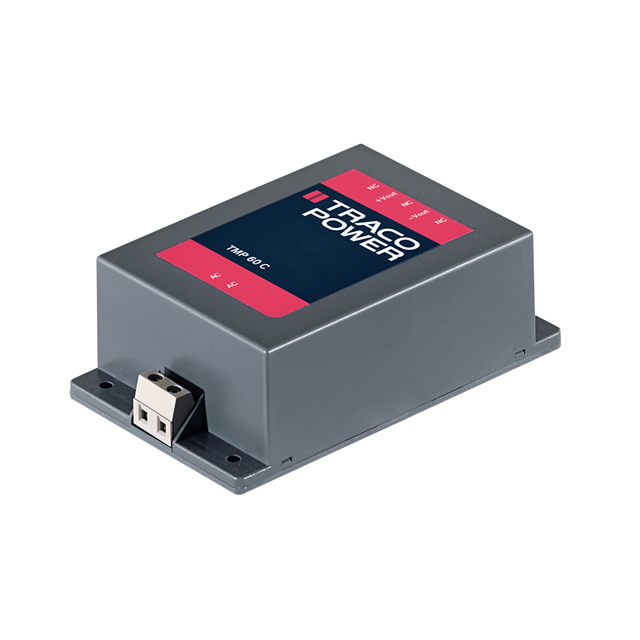

TMP 60148C

Active

Traco Power

AC/DC CONVERTER 48V 60W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 48V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	TMP 60148C

Applications	Industrial, ITE (Commercial)
Approval Agency	cULus, CE, cURus, CB
Current - Output 1	1.25 A
Efficiency	84 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	112 mm
Size / Dimension [x]	4.41 "
Size / Dimension [y]	67.8 mm
Size / Dimension [y]	2.67 in
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Voltage - Output 1	Mounting Type	Efficiency	Minimum Load Required	Current - Output 1	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Applications	Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Approval Agency
Traco Power TMP 60148C	48 V	Chassis Mount	84 %		1.25 A	Adjustable Output Universal Input	67.8 mm	2.67 in	38.1 mm	112 mm	1.5 "	4.41 "	Industrial ITE (Commercial)	Enclosed	85 VAC 120 VDC	264 VAC 370 VDC	3000 V	-25 °C	70 °C	1	CB CE cULus cURus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 370 VDC Input
