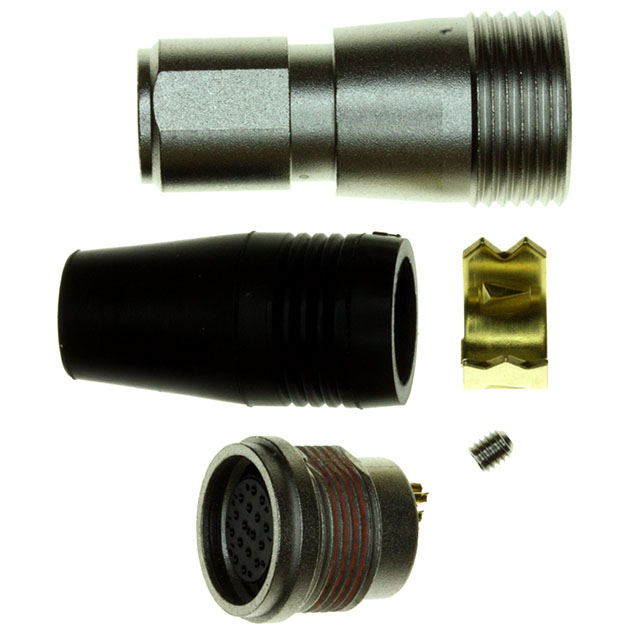

HR25A-9J-16S

Active

Hirose Electric USA, Inc.

CONN JACK FMALE 16P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR25A-9J-16S

Active

Hirose Electric USA, Inc.

CONN JACK FMALE 16P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR25A-9J-16S

Applications	Industrial
Backshell Material, Plating	Nickel, Brass
Color	Black, Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Backshell, Strain Relief, Clamp
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	9
Voltage Rating	30 VAC, 42 VDC

HR25A Series

Part	Primary Material	Contact Finish - Mating	Mounting Type	Fastening Type	Voltage Rating	Insert Material	Shell Material	Number of Positions	Orientation	Color	Mounting Feature	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shell Finish	Contact Material	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shell Size - Insert	Backshell Material, Plating	Features	Housing Color	Note	Contact Shape	Contact Type	Shielding	Type	Number of Positions
Hirose Electric USA, Inc. HR25A-9R-12PA	Metal	Gold	Panel Mount Through Hole	Push-Pull	30 VAC 42 VDC	Polyphenylene Sulfide (PPS)	Zinc Alloy	12	Keyed	Silver	Bulkhead - Rear Side Nut	UL94 V-0	-25 °C	85 °C	Solder	Nickel	Phosphor Bronze	Industrial	0.203 Ám	8 Áin	Male Pins Receptacle	9
Hirose Electric USA, Inc. HR25A-9J-20P	Metal	Gold	Free Hanging (In-Line)	Push-Pull	30 VAC 42 VDC	Polyphenylene Sulfide (PPS)	Zinc Alloy	20	Keyed	Black Silver		UL94 V-0	-25 °C	85 °C		Nickel	Phosphor Bronze	Industrial	0.203 Ám	8 Áin	Jack Male Pins	9	Brass Nickel	Backshell Clamp Strain Relief
Hirose Electric USA, Inc. HR25A-7R-8S	Metal	Gold		Push-Pull	30 VAC 42 VDC	Polyphenylene Sulfide (PPS)	Zinc Alloy	8	Keyed	Silver	Bulkhead - Rear Side Nut	UL94 V-0	-25 °C	85 °C		Nickel	Phosphor Bronze	Industrial	0.203 Ám	8 Áin	Receptacle Female Sockets	7
Hirose Electric USA, Inc. HR25A-9R-20P	Metal	Gold		Push-Pull	30 VAC 42 VDC	Polyphenylene Sulfide (PPS)	Zinc Alloy	20	Keyed	Silver	Bulkhead - Rear Side Nut	UL94 V-0	-25 °C	85 °C		Nickel	Phosphor Bronze	Industrial	0.203 Ám	8 Áin	Male Pins Receptacle	9
Hirose Electric USA, Inc. HR25A-9R-20SC				Push-Pull		Polyphenylene Sulfide (PPS)	Zinc Alloy	20	Keyed		Bulkhead - Rear Side Nut	UL94 V-0	-25 °C	85 °C		Nickel					Receptacle Housing	9			Silver	Contacts Not Included	Circular	Crimp	Unshielded	For Female Sockets
Hirose Electric USA, Inc. HR25A-7P-4P	Metal	Gold	Free Hanging (In-Line)	Push-Pull	30 VAC 42 VDC	Polyphenylene Sulfide (PPS)	Zinc Alloy	4	Keyed	Black Silver		UL94 V-0	-25 °C	85 °C		Nickel	Phosphor Bronze	Industrial	0.203 Ám	8 Áin	Male Pins Plug	7	Brass Nickel	Backshell Clamp Strain Relief
Hirose Electric USA, Inc. HR25A-9R-12PC				Push-Pull		Polyphenylene Sulfide (PPS)	Zinc Alloy	12	Keyed		Bulkhead - Rear Side Nut	UL94 V-0	-25 °C	85 °C		Nickel					Receptacle Housing	9			Silver	Contacts Not Included	Circular	Crimp	Unshielded	For Male Pins
Hirose Electric USA, Inc. HR25A-9J-16S	Metal	Gold	Free Hanging (In-Line)	Push-Pull	30 VAC 42 VDC	Polyphenylene Sulfide (PPS)	Zinc Alloy		Keyed	Black Silver		UL94 V-0	-25 °C	85 °C		Nickel	Phosphor Bronze	Industrial	0.203 Ám	8 Áin	Female Sockets Jack	9	Brass Nickel	Backshell Clamp Strain Relief							16
Hirose Electric USA, Inc. HR25A-7P-8P	Metal	Gold	Free Hanging (In-Line)	Push-Pull	30 VAC 42 VDC	Polyphenylene Sulfide (PPS)	Zinc Alloy	8	Keyed	Black Silver		UL94 V-0	-25 °C	85 °C		Nickel	Phosphor Bronze	Industrial	0.203 Ám	8 Áin	Male Pins Plug	7	Brass Nickel	Backshell Clamp Strain Relief
Hirose Electric USA, Inc. HR25A-9R-20PA	Metal	Gold	Panel Mount Through Hole	Push-Pull	30 VAC 42 VDC	Polyphenylene Sulfide (PPS)	Zinc Alloy	20	Keyed	Silver	Bulkhead - Rear Side Nut	UL94 V-0	-25 °C	85 °C	Solder	Nickel	Phosphor Bronze	Industrial	0.203 Ám	8 Áin	Male Pins Receptacle	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 23.63

Description

General part information

HR25A Series

16 Position Circular Connector Jack, Female Sockets Solder Cup
