190-025-213L539

Active

MH Connectors

CONN D-SUB RCPT 25POS R/A SLDR

Search across all available documentation for this part.

Active

MH Connectors

CONN D-SUB RCPT 25POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	190-025-213L539

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Type	Contact Material	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Current Rating (Amps)	Shell Material, Finish	Flange Feature	Voltage Rating	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Connector Style	Color	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Contact Finish	Contact Type	Contact Finish Thickness	Features
MH Connectors 190-025-213L539	Panel Mount Right Angle Through Hole	Brass	Polybutylene Terephthalate (PBT)	85 °C	-55 °C	2	3 A	Nickel Plated Steel	Housing/Shell (4-40)	250 VDC	Receptacle Female Sockets	B DB	3	Solder	D-Sub	Black	0.76 Ám	30 Áin	UL94 V-0	Gold	Signal
MH Connectors 190-025-162-001	Board Edge Right Angle Surface Mount	Phosphor Bronze	Polyamide (PA6T) Nylon 6T			2	5 A	Steel	Housing/Shell (4-40)	300 VDC	Male Pins Plug	B DB	3	Solder	D-Sub	Black			UL94 V-0	Gold	Signal	Flash	Board Guide Board Lock Grounding Indents Shielded
MH Connectors 190-025-163R001	Board Edge Right Angle Surface Mount	Phosphor Bronze	Polyamide (PA6T) Nylon 6T	105 ░C	-55 °C	2	5 A	Nickel Plated Steel	Housing/Shell (4-40)	300 VDC	Male Pins Plug	B DB	3	Solder	D-Sub	Black			UL94 V-0	Gold	Signal	Flash	Board Guide Board Lock Grounding Indents Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 6.85

General part information

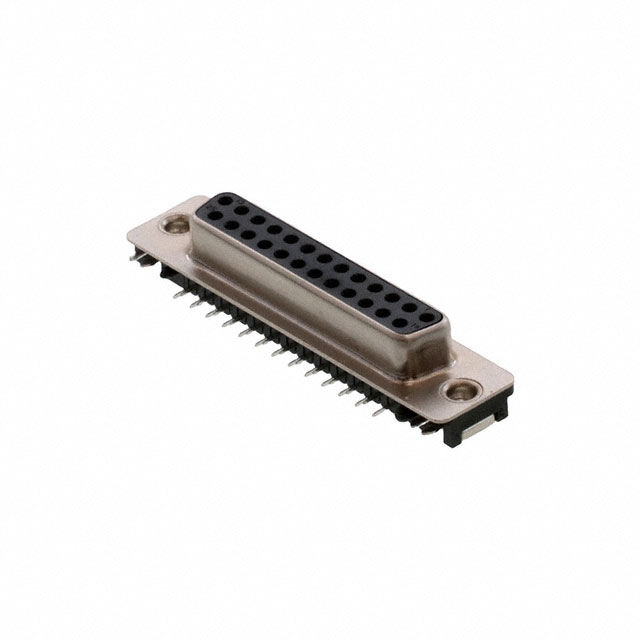

25 Position D-Sub Receptacle, Female Sockets Connector
