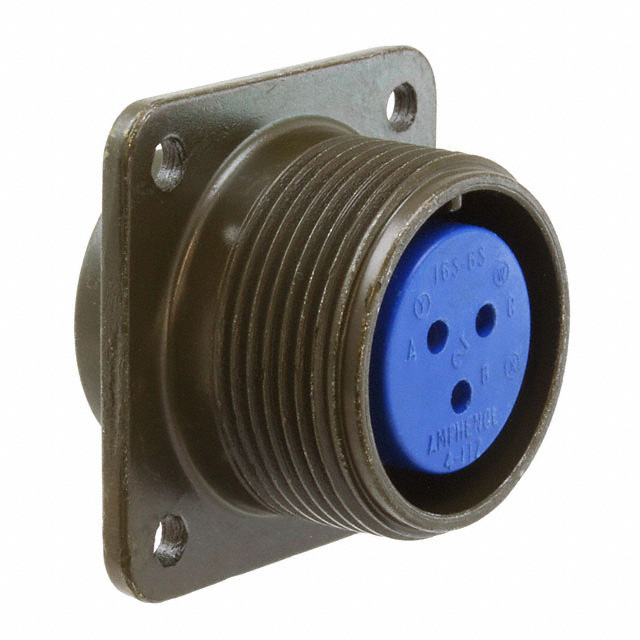

97-3102A-16S-6S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 3P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

97-3102A-16S-6S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 3P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	97-3102A-16S-6S

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Diallyl Phthalate (DAP)
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	16S-6
Shielding	Unshielded

97-3102A16 Series

Part	Applications	Color	Orientation	Insert Material	Connector Type	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Feature	Shell Material	Contact Finish - Mating	Shielding	Primary Material	Shell Size - Insert	Number of Positions
Amphenol Industrial Operations 97-3102A-16S-8S	Automotive Industrial	Olive Drab	N	Diallyl Phthalate (DAP)	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Flange	Aluminum Alloy	Silver	Unshielded	Metal	16S-8
Amphenol Industrial Operations 97-3102A-16-10P	Automotive Industrial	Olive Drab	N	Diallyl Phthalate (DAP)	Male Pins Receptacle	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Flange	Aluminum Alloy	Silver	Unshielded	Metal	16-10
Amphenol Industrial Operations 97-3102A-16S-1S(946)	Automotive Industrial	Black	N	Diallyl Phthalate (DAP)	Receptacle Female Sockets	Black Zinc Alloy	-55 °C	125 °C	Copper Alloy	Flange	Aluminum Alloy	Silver	Unshielded	Metal	16S-1	7
Amphenol Industrial Operations 97-3102A-16S-6S	Automotive Industrial	Olive Drab	N	Diallyl Phthalate (DAP)	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Flange	Aluminum Alloy	Silver	Unshielded	Metal	16S-6
Amphenol Industrial Operations 97-3102A-16S-1P(946)	Automotive Industrial	Black	N	Diallyl Phthalate (DAP)	Male Pins Receptacle	Black Zinc Alloy	-55 °C	125 °C	Copper Alloy	Flange	Aluminum Alloy	Silver	Unshielded	Metal	16S-1	7
Amphenol Industrial Operations 97-3102A-16S-1S	Automotive Industrial	Olive Drab	N	Diallyl Phthalate (DAP)	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Flange	Aluminum Alloy	Silver	Unshielded	Metal	16S-1	7
Amphenol Industrial Operations 97-3102A-16S-8S(946)	Automotive Industrial	Black	N	Diallyl Phthalate (DAP)	Receptacle Female Sockets	Black Zinc Alloy	-55 °C	125 °C	Copper Alloy	Flange	Aluminum Alloy	Silver	Unshielded	Metal	16S-8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.66
		10	$ 28.23

Description

General part information

97-3102A16 Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
