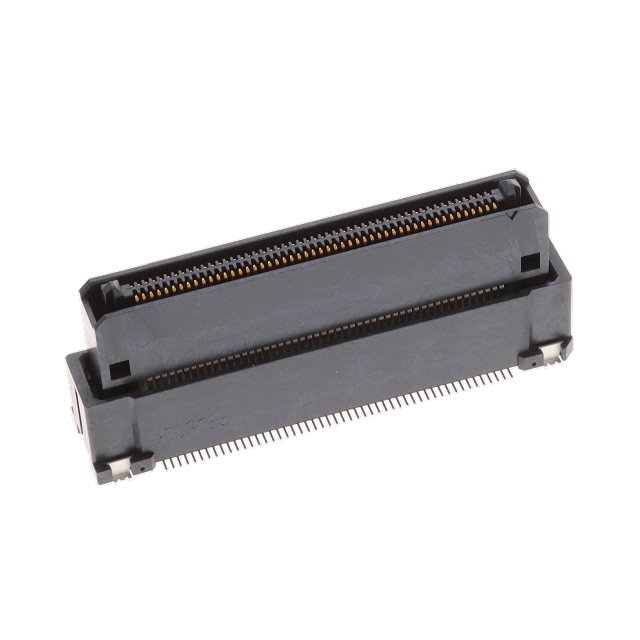

AX01F100VACBR150
ActiveJAE Electronics
FLOATING SIDE B2B CONNECTOR, 100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AX01F100VACBR150
ActiveJAE Electronics
FLOATING SIDE B2B CONNECTOR, 100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AX01F100VACBR150 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Board Guide |
| Height Above Board [z] | 0.248 " |
| Height Above Board [z] | 6.3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.33 | |
| 10 | $ 7.50 | |||
| 25 | $ 7.06 | |||
| 50 | $ 6.88 | |||
| Digi-Reel® | 1 | $ 8.33 | ||
| 10 | $ 7.50 | |||
| 25 | $ 7.06 | |||
| 50 | $ 6.88 | |||
| Tape & Reel (TR) | 150 | $ 6.70 | ||
| 300 | $ 5.98 | |||
| 450 | $ 5.61 | |||
| 750 | $ 5.25 | |||
| 1050 | $ 4.96 | |||
| 1500 | $ 4.82 | |||
Description
General part information
AX01F100 Series
100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
