K151-1012-00

Active

Jacob GmbH

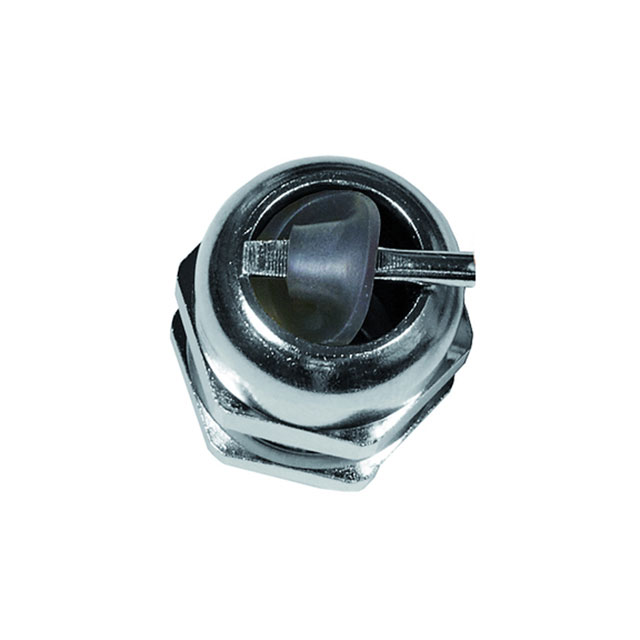

CABLE GLAND 3-8MM M12 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 3-8MM M12 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	K151-1012-00

Color	Silver
Includes	O-Ring, Seal, Contact Spring
Ingress Protection	IP69, IP66, IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Thread Length	0.256 in
Thread Length	6.5 mm
Thread Size	M12x1.5
Type	Cable Gland

Part	Thread Length	Thread Length	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Type	Ingress Protection	Color
Jacob GmbH K151-1012-00	0.256 in	6.5 mm	Brass Nickel Plated	3 mm	0.118 in	8 mm	0.315 in	M12x1.5	100 °C	-40 °C	Contact Spring O-Ring Seal	Cable Gland	IP66 IP68 IP69	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M12x1.5 Silver
