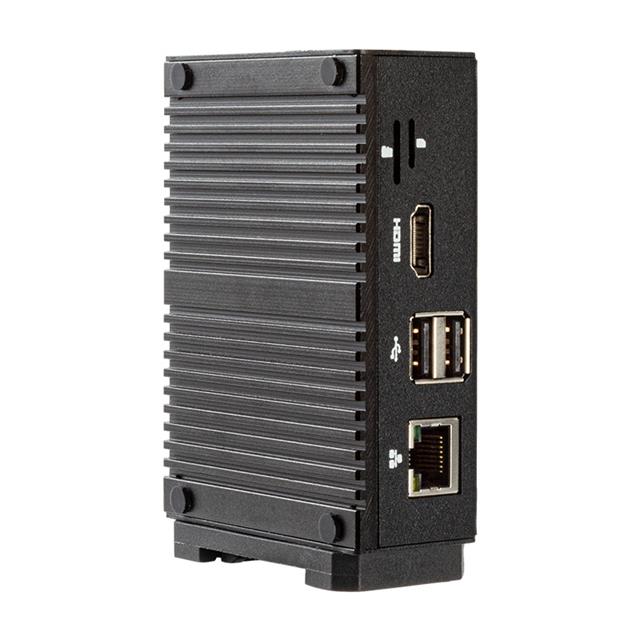

ED-CM4SEN-0232-C
ActiveEDATEC
SBC 1.5GHZ 4 CORE 2GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
ED-CM4SEN-0232-C
ActiveEDATEC
SBC 1.5GHZ 4 CORE 2GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ED-CM4SEN-0232-C |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Raspberry Pi CM4 # CM4002032: ARM Cortex-A72 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | PCIe, mPCIe |
| Form Factor | Desktop |
| Number of Cores | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| RS-232 (422, 485) | 5 |
| Size / Dimension [x] | 103 mm |
| Size / Dimension [x] | 4.055 in |
| Size / Dimension [y] | 73 mm |
| Size / Dimension [y] | 2.874 in |
| Speed | 1.5 GHz |
| Storage Interface | eMMC |
| USB | micro USB Type-B (1), USB 2.0 Type-A (2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 164.06 | |
Description
General part information
ED-CM4SEN-0232 Series
Single Board Computer 1.5GHz 4 Core RAM Raspberry Pi CM4 # CM4002032: ARM Cortex-A72
Documents
Technical documentation and resources
No documents available
