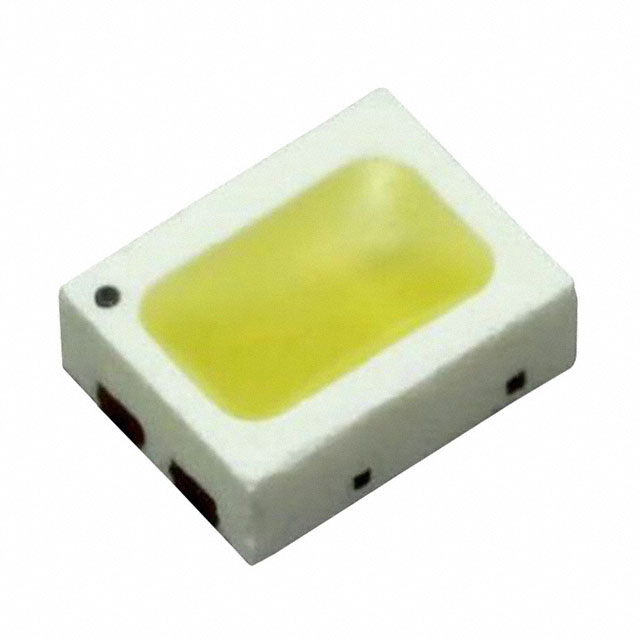

VCEW1152GDS-TR
ActiveStanley Electric Co
LED WHITE DIFFUSED 3SMD
Deep-Dive with AI
Search across all available documentation for this part.
VCEW1152GDS-TR
ActiveStanley Electric Co
LED WHITE DIFFUSED 3SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VCEW1152GDS-TR |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] [z] | 0.85 mm |
| Lens Color | Yellow |
| Lens Size [x] | 1.8 mm |
| Lens Size [y] | 1.1 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Diffused |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 2.2 mm |
| Size / Dimension [y] | 1.7 mm |
| Supplier Device Package | 3-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VCEW1152 Series
White LED Indication - Discrete 3.2V 3-SMD, No Lead
Documents
Technical documentation and resources
No documents available
