CD-02-05-C-46

Active

Wakefield-Vette

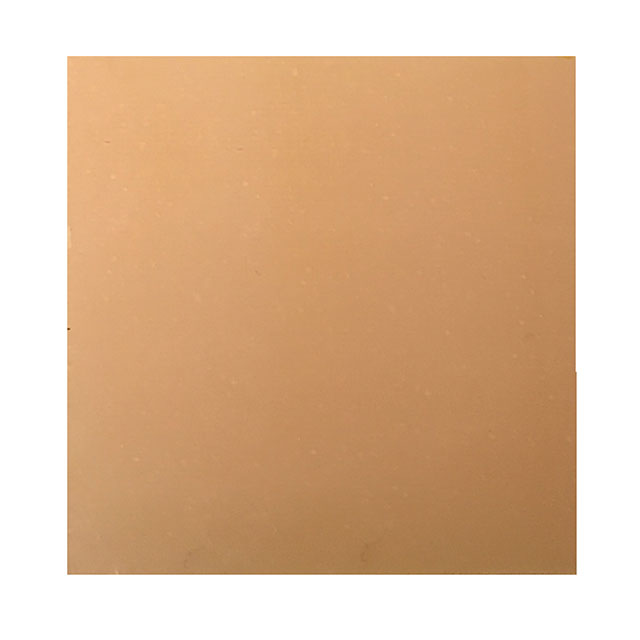

THERM PAD 46X46MM ORANGE

Search across all available documentation for this part.

Active

Wakefield-Vette

THERM PAD 46X46MM ORANGE

Technical Specifications

Parameters and characteristics for this part

Specification	CD-02-05-C-46

Backing, Carrier	Polyimide
Material	Phase Change Compound
Outline [x]	46 mm
Outline [y]	46 mm
Shape	Square
Shelf Life	Indefinite
Storage/Refrigeration Temperature [Max]	95 °F
Storage/Refrigeration Temperature [Max]	35 °C
Thickness	0.076 mm
Thickness	0.003 in

Part	Backing, Carrier	Material	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Outline [x]	Outline [y]	Thickness	Thickness	Shape	Usage	Shelf Life	Outline [diameter]
Wakefield-Vette CD-02-05-220-N	Polyimide	Phase Change Compound	95 °F	35 °C	17.78 mm	12.7 mm	0.076 mm	0.003 in	Rectangular	TO-220	Indefinite
Wakefield-Vette CD-02-05-LED-2	Polyimide	Phase Change Compound	95 °F	35 °C			0.076 mm	0.003 in	Round	LED	Indefinite	50.8 mm
Wakefield-Vette CD-02-05-C-34	Polyimide	Phase Change Compound	95 °F	35 °C	33.5 mm	33.5 mm	0.076 mm	0.003 in	Square		Indefinite
Wakefield-Vette CD-02-05-C-20	Polyimide	Phase Change Compound	95 °F	35 °C	19.51 mm	19.51 mm	0.076 mm	0.003 in	Square		Indefinite
Wakefield-Vette CD-02-05-126	Polyimide	Phase Change Compound	95 °F	35 °C	12.7 mm	8.89 mm	0.076 mm	0.003 in	Rectangular	TO-126	Indefinite
Wakefield-Vette CD-02-05-220	Polyimide	Phase Change Compound	95 °F	35 °C	17.78 mm	12.7 mm	0.076 mm	0.003 in	Rectangular	TO-220	Indefinite
Wakefield-Vette CD-02-05-DO4-5	Polyimide	Phase Change Compound	95 °F	35 °C			0.076 mm	0.003 in	Round	DO-4 DO-5	Indefinite	20.32 mm
Wakefield-Vette CD-02-05-C-46	Polyimide	Phase Change Compound	95 °F	35 °C	46 mm	46 mm	0.076 mm	0.003 in	Square		Indefinite
Wakefield-Vette CD-02-05-220-3	Polyimide	Phase Change Compound	95 °F	35 °C			0.076 mm	0.003 in	Rectangular	TO-220	Indefinite
Wakefield-Vette CD-02-05-264	Polyimide	Phase Change Compound	95 °F	35 °C	26.67 mm	21.59 mm	0.076 mm	0.003 in	Rectangular	TO-264	Indefinite

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Orange 46.00mm x 46.00mm Square
