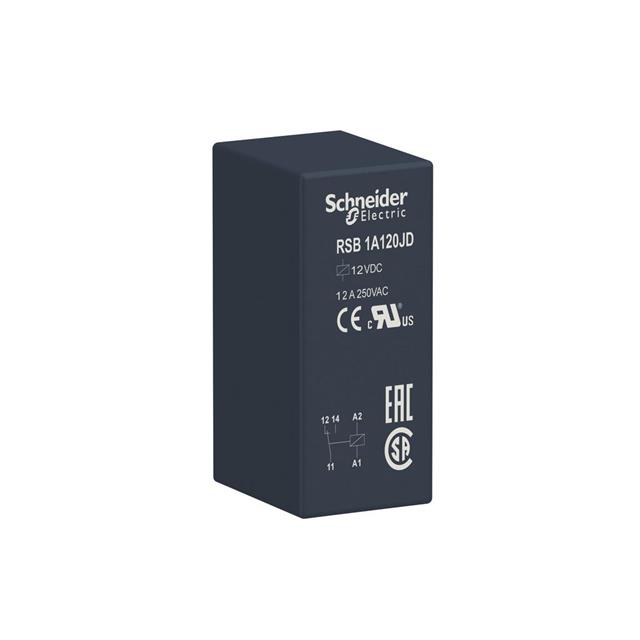

RSB1A120JD

Active

SQUARE D BY SCHNEIDER ELECTRIC

POWER RELAY, SPDT, 12 VDC, 12 A, RSB SERIES, SOCKET, DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN +3

RSB1A120JD

Active

SQUARE D BY SCHNEIDER ELECTRIC

POWER RELAY, SPDT, 12 VDC, 12 A, RSB SERIES, SOCKET, DC

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RSB1A120JD

Approval Agency	CSA, UL, EAC
Coil Current	33.3 mA
Coil Resistance	360 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Load - Max Switching	3600 VA
Mounting Type	Socketable
Must Release Voltage	1.2 VDC
Operate Time	20 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	300 VDC
Termination Style	Plug In

RSB1A Series

Part	Coil Voltage	Load - Max Switching	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Release Time	Relay Type	Coil Resistance	Switching Voltage	Coil Current	Coil Type	Must Release Voltage	Contact Form	Must Operate Voltage	Termination Style	Contact Material	Mounting Type	Operate Time	Switching Voltage [Max]	Load - Max Switching
SQUARE D BY SCHNEIDER ELECTRIC RSB1A120P7S	230 VAC	3600 W 4800 VA	CSA EAC UL	-40 °C	70 °C	12 A	10 ms	General Purpose	38.5 kOhms	300 VDC 400 VAC	6 mA	Non Latching	34.5 VAC	SPDT (1 Form C)	184 VAC	Screw Terminal	Silver Nickel (AgNi)	DIN Rail	12 ms
SQUARE D BY SCHNEIDER ELECTRIC RSB1A160F7S	120 VAC	4800 W 6400 VA	CSA EAC UL	-40 °C	70 °C	16 A	10 ms	General Purpose	10.2 kOhms	300 VDC 400 VAC	11.8 mA	Non Latching	18 VAC	SPDT (1 Form C)	102 VAC	Spring Terminal	Silver Nickel (AgNi)	Socketable	12 ms
SQUARE D BY SCHNEIDER ELECTRIC RSB1A160F7	120 VAC	448 W 4000 VA	CSA EAC UL	-40 °C	70 °C	16 A	20 ms	General Purpose	8.36 kOhms	28 VDC 250 VAC	14.4 mA	Non Latching	18 VAC	SPDT (1 Form C)		Plug In	Silver Nickel (AgNi)	Socketable	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RSB1A120JD	12 VDC	3600 VA	CSA EAC UL	-40 °C	85 °C	12 A	20 ms	General Purpose	360 Ohms		33.3 mA	Non Latching	1.2 VDC	SPDT (1 Form C)		Plug In	Silver Nickel (AgNi)	Socketable	20 ms	300 VDC
SQUARE D BY SCHNEIDER ELECTRIC RSB1A120U7	240 VAC	3600 VA	CSA EAC UL	-40 °C	70 °C	12 A	20 ms	General Purpose	33 kOhms		7.3 mA	Non Latching	36 VAC	SPDT (1 Form C)		Plug In	Silver Nickel (AgNi)	Socketable	20 ms	300 VDC
SQUARE D BY SCHNEIDER ELECTRIC RSB1A160ND	60 VDC	4000 VA	CSA EAC UL	-40 °C	85 °C	16 A	20 ms	General Purpose	9 kOhms	250 VAC 300 VDC	6.7 mA	Non Latching	6 VDC	SPDT (1 Form C)	42 VDC	Plug In	Silver Nickel (AgNi)	Socketable	20 ms		4800 W
SQUARE D BY SCHNEIDER ELECTRIC RSB1A160E7	48 VAC/DC	4000 VA	CSA EAC UL	-40 °C	70 °C	16 A	20 ms	General Purpose	1.54 kOhms	250 VAC 300 VDC	31.2 mA	Non Latching	7.2 VAC	SPDT (1 Form C)	38.4 VAC	Plug In	Silver Nickel (AgNi)	Socketable	20 ms		4800 W
SQUARE D BY SCHNEIDER ELECTRIC RSB1A160JDS	12 VDC	448 W 4000 VA	CSA EAC UL	-40 °C	70 °C	16 A	4 ms	General Purpose	360 Ohms	28 VDC 250 VAC	33.3 mA	Non Latching	1.2 VDC	SPDT (1 Form C)	9.6 VDC	Spring Terminal	Silver Nickel (AgNi)	DIN Rail	9 ms
SQUARE D BY SCHNEIDER ELECTRIC RSB1A120FD	110 VDC	3000 VA 3600 W	CSA EAC UL	-40 °C	85 °C	12 A	20 ms	General Purpose	30.25 kOhms	250 VAC 300 VDC	3.6 mA	Non Latching	11 VDC	SPDT (1 Form C)	88 VDC	Plug In	Silver Nickel (AgNi)	Socketable	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RSB1A160P7S	230 VAC	4800 W 6400 VA	CSA EAC UL	-40 °C	70 °C	16 A	10 ms	General Purpose	38.5 kOhms	300 VDC 400 VAC	6 mA	Non Latching	34.5 VAC	SPDT (1 Form C)	184 VAC	Screw Terminal	Silver Nickel (AgNi)	DIN Rail	12 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.23
		10	$ 6.78
		25	$ 6.03
		50	$ 5.73
		100	$ 5.43
		250	$ 4.82
		500	$ 4.52
		1000	$ 4.27
Newark	Each	10	$ 4.55
		25	$ 4.25
		50	$ 3.78
		100	$ 3.19
		250	$ 3.03
		500	$ 2.97
		1000	$ 2.87

Description

General part information

RSB1A Series

General Purpose Relay SPDT (1 Form C) 12VDC Coil Socketable
