M83513/27-H01NP

Active

Cinch Connectivity Solutions Trompeter

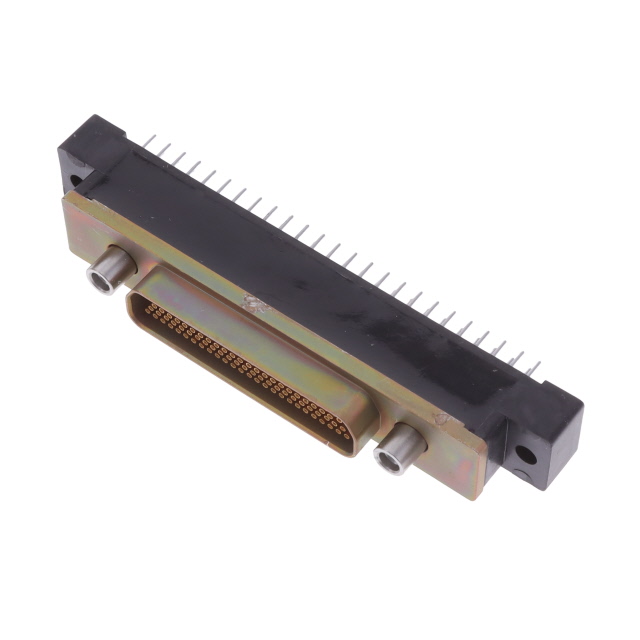

CONN MICRO-D RCPT 100P VERT SLDR

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D RCPT 100P VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	M83513/27-H01NP

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	100
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Aluminum Alloy, Electroless
Shell Size, Connector Layout [custom]	0.05
Shell Size, Connector Layout [custom]	0.05
Termination	Solder

Part	Shell Material, Finish	Current Rating (Amps)	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Contact Material	Material Flammability Rating	Flange Feature	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Dielectric Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish
Cinch Connectivity Solutions Trompeter M83513/27-H01NP	Aluminum Alloy Electroless Nickel Plated	3 A	Signal	50 µin	1.27 µm	Through Hole	Receptacle Female Sockets	Copper Alloy	UL94 V-0	Female Screwlock (4-40) Mating Side	Solder	0.05	0.05	100	Polyester Glass Filled	D-Type Micro-D	-55 °C	125 °C	Gold
