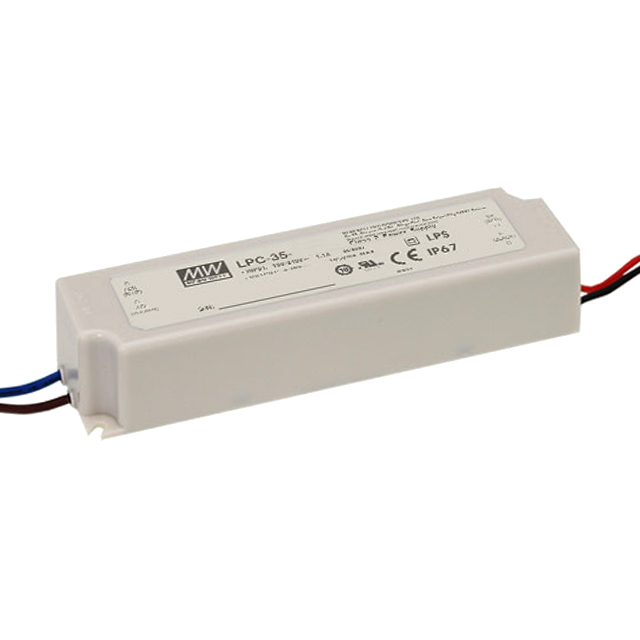

LPC-35-1400
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 9-24V 1.4A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPC-35-1400
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 9-24V 1.4A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPC-35-1400 |
|---|---|
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 1.4 A |
| Efficiency | 85 % |
| Features | OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 34 W |
| Ratings | IP67 |
| Size / Dimension [x] | 148 mm |
| Size / Dimension [x] | 5.83 in |
| Size / Dimension [y] | 1.57 " |
| Size / Dimension [y] | 40 mm |
| Size / Dimension [z] | 1.18 in |
| Size / Dimension [z] | 30 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 264 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output [Max] | 24 V |
| Voltage - Output [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.21 | |
| 5 | $ 15.03 | |||
| 10 | $ 14.54 | |||
| 25 | $ 13.93 | |||
Description
General part information
LPC-35 Series
1.4A 9 ~ 24V Constant Current LED Driver AC DC Converter Topology 1 Output
