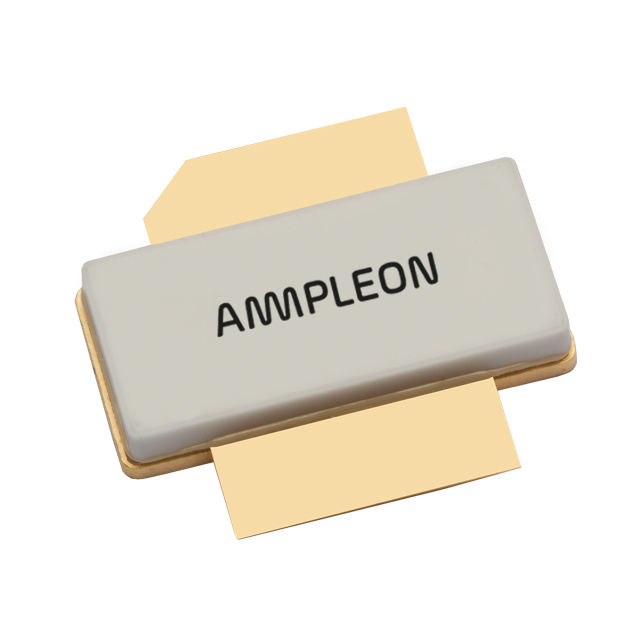

BLA8G1011LS-300U

Ampleon USA Inc.

RF MOSFET LDMOS 32V SOT502B

Search across all available documentation for this part.

Ampleon USA Inc.

RF MOSFET LDMOS 32V SOT502B

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Test	Package / Case	Current - Test	Power - Output	Supplier Device Package	Gain	Voltage - Rated	Frequency	Mounting Type	Frequency [Min]	Frequency [Max]	Current Rating (Amps)
Ampleon USA Inc. BLA8G1011LS-300U	32 V	SOT-502B	150 mA	300 W	SOT502B	16.5 dBi	65 V	1.06 GHz	Chassis Mount
Ampleon USA Inc. BLA8G1011L-300GU	32 V	SOT-502A	150 mA	300 W	CDFM2	16.5 dBi	65 V	1.06 GHz	Chassis Mount
Ampleon USA Inc. BLA8G1011LS-300GU	32 V	SOT-502E	150 mA	300 W	CDFM2	16.5 dBi	65 V	1.06 GHz	Chassis Mount
Ampleon USA Inc. BLA8H0910L-500U	50 V	SOT-502A	90 mA	500 W	SOT502A	19 dB	114.5 V		Chassis Mount	900 MHz	930 MHz	2.8 µA
Ampleon USA Inc. BLA8G1011L-300U	32 V	SOT-502A	150 mA	300 W	SOT502A	16.5 dBi	65 V	1.06 GHz	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 322.84

General part information

RF Mosfet 32 V 150 mA 1.06GHz 16.5dB 300W SOT502B
