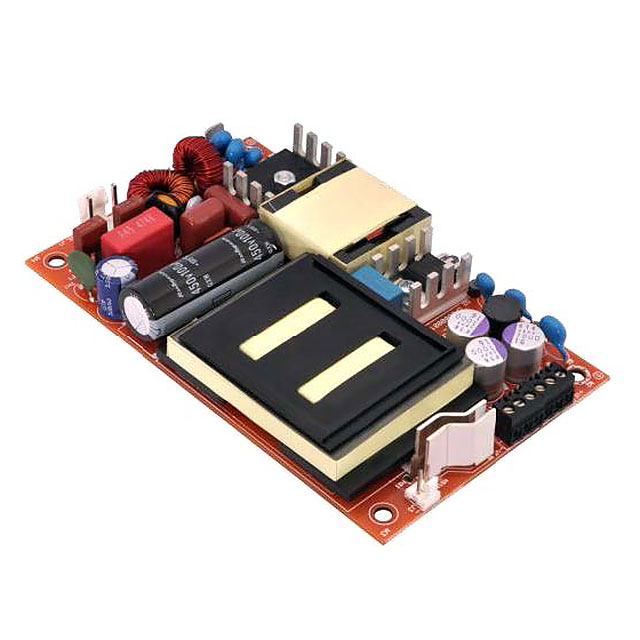

MBC275-1048L

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 48V 160/275W

Search across all available documentation for this part.

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 48V 160/275W

Technical Specifications

Parameters and characteristics for this part

Specification	MBC275-1048L

Applications	Medical
Approval Agency	CE
Current - Output 1	3.33 A
Efficiency	92 %
Features	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	160 W
Power (Watts) [Max]	275 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	19 mm
Size / Dimension [z]	0.75 in
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Power (Watts) [Max]	Power (Watts)	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Voltage - Isolation	Number of Outputs	Type	Applications	Mounting Type	Features	Current - Output 1	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]
EOS Power India Private Ltd MBC275-1015L	275 W	160 W	88 %	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	CE	4000 V	1	Open Frame	Medical	Chassis Mount	Adjustable Output DC Input Capable PFC Standby Output Universal Input	10.66 A	15 V
EOS Power India Private Ltd MBC275-1T12L	275 W	160 W	88 %	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	CE	4000 V	1	Open Frame	Medical	Chassis Mount	Adjustable Output DC Input Capable PFC Standby Output Universal Input	13.33 A	12 V
EOS Power India Private Ltd MBC275-1030L	275 W	160 W	90 %	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	CE	4000 V	1	Open Frame	Medical	Chassis Mount	Adjustable Output DC Input Capable PFC Standby Output Universal Input	5.33 A	30 V	264 VAC	80 VAC
EOS Power India Private Ltd MBC275-1048L	275 W	160 W	92 %	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	CE	4000 V	1	Open Frame	Medical	Chassis Mount	Adjustable Output DC Input Capable PFC Standby Output Universal Input	3.33 A	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 109.75

General part information

Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
