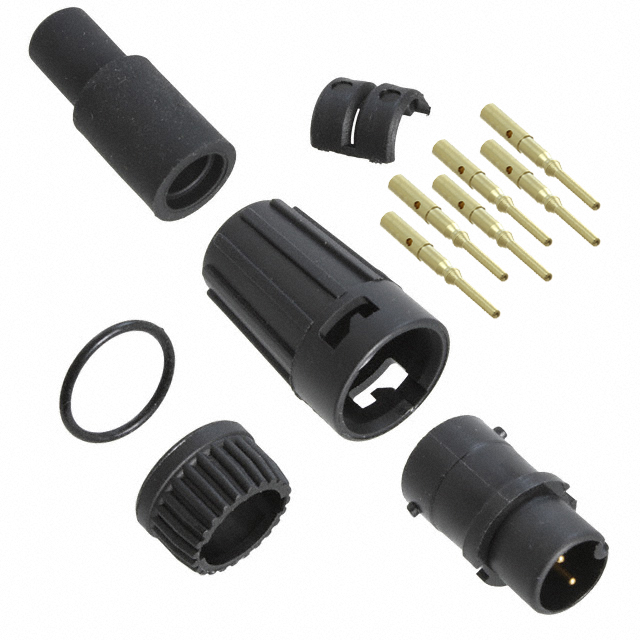

6280-6PG-516

Active

Conxall/Switchcraft

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6280-6PG-516

Active

Conxall/Switchcraft

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6280-6PG-516

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	0.18 in
Cable Opening [Max] [custom]	4.57 mm
Cable Opening [Min] [custom]	0.16 in
Cable Opening [Min] [custom]	4.06 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

6280-6PG Series

Part	Fastening Type	Orientation	Features	Contact Finish - Mating	Termination	Current Rating (Amps)	Connector Type	Number of Positions	Shielding	Mounting Type	Contact Material	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating	Voltage Rating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Color	Applications	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 6280-6PG-315	Bayonet Lock	Keyed	Backshell	Gold	Crimp	Varies by Wire Gauge	Male Pins Plug	6	Unshielded	Free Hanging (In-Line)	Brass	Plastic	0.15 in 0.17 in	3.81 mm 4.32 mm	Nylon Polyamide (PA)	600 V	Weathertight	-40 °C	115 °C	Black	Automotive Communication Systems Instrumentation
Conxall/Switchcraft 6280-6PG-519	Bayonet Lock	Keyed	Backshell	Gold	Crimp	Varies by Wire Gauge	Male Pins Plug	6	Unshielded	Free Hanging (In-Line)	Brass	Plastic			Nylon Polyamide (PA)	600 V	Weathertight	-40 °C	115 °C	Black	Automotive Communication Systems Instrumentation	0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6280-6PG-522	Bayonet Lock	Keyed	Backshell	Gold	Crimp	Varies by Wire Gauge	Male Pins Plug	6	Unshielded	Free Hanging (In-Line)	Brass	Plastic			Nylon Polyamide (PA)	600 V	Weathertight	-40 °C	115 °C	Black	Automotive Communication Systems Instrumentation	0.25 in	0.22 in	5.59 mm	6.35 mm
Conxall/Switchcraft 6280-6PG-516	Bayonet Lock	Keyed	Backshell	Gold	Crimp	Varies by Wire Gauge	Male Pins Plug	6	Unshielded	Free Hanging (In-Line)	Brass	Plastic			Nylon Polyamide (PA)	600 V	Weathertight	-40 °C	115 °C	Black	Automotive Communication Systems Instrumentation					0.16 in	0.18 in	4.06 mm	4.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.62
		10	$ 9.55
		25	$ 9.00
		50	$ 8.77

Description

General part information

6280-6PG Series

6 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources
