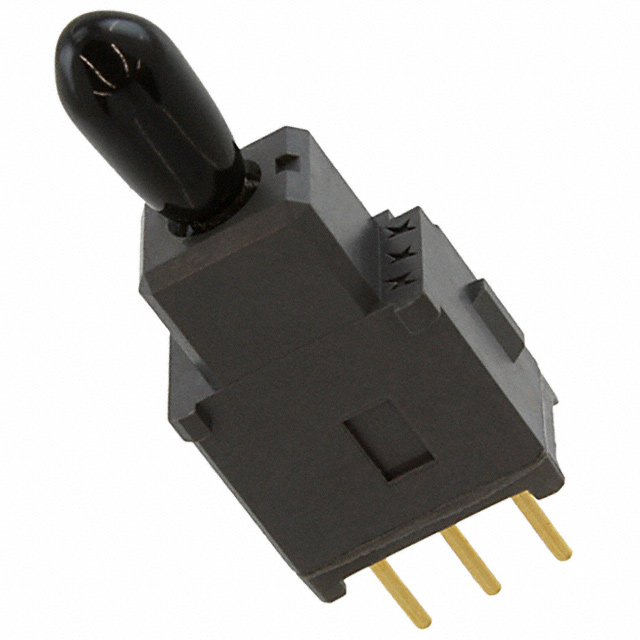

A18JP-JA

Active

NKK Switches

SWITCH TOGGLE (ON) OFF (ON) SPDT BAT LEVER PC PINS 0.1A 28VAC 28VDC 0.4VA PC MOUNT

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE (ON) OFF (ON) SPDT BAT LEVER PC PINS 0.1A 28VAC 28VDC 0.4VA PC MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	A18JP-JA

Actuator Length [x]	6.3 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard Round with Cap
Bushing Thread	Unthreaded, Square
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Black Cap
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Voltage Rating - DC	Circuit	Voltage Rating - AC	Termination Style	Actuator Material	Illumination	Bushing Thread	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Mounting Type	Current Rating (Amps)	Electrical Life	Actuator Length [x]	Features
NKK Switches A18JP-JA	28 V	SPDT	28 V	PC Pin	Glass Filled Nylon Polyamide (PA)	Non-Illuminated	Unthreaded Square	Mom-Off-Mom	-30 ░C	85 °C	Standard Round with Cap	Through Hole	0.4 VA	50000 Cycles	6.3 mm	Black Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole
