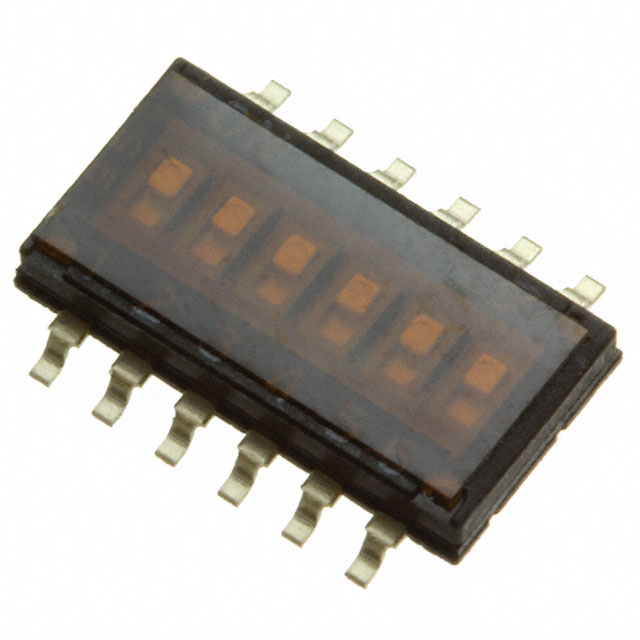

97CG04SRT
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
97CG04SRT
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 97CG04SRT |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Nylon, Polyamide (PA) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Features | Tape Seal |
| Height Above Board | 1.6 mm |
| Height Above Board [z] | 0.063 in |
| Length [x] | 6.31 mm |
| Length [x] | 0.248 in |
| Mechanical Life | 1000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 12000 | $ 2.88 | |
Description
General part information
97CG04 Series
Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
