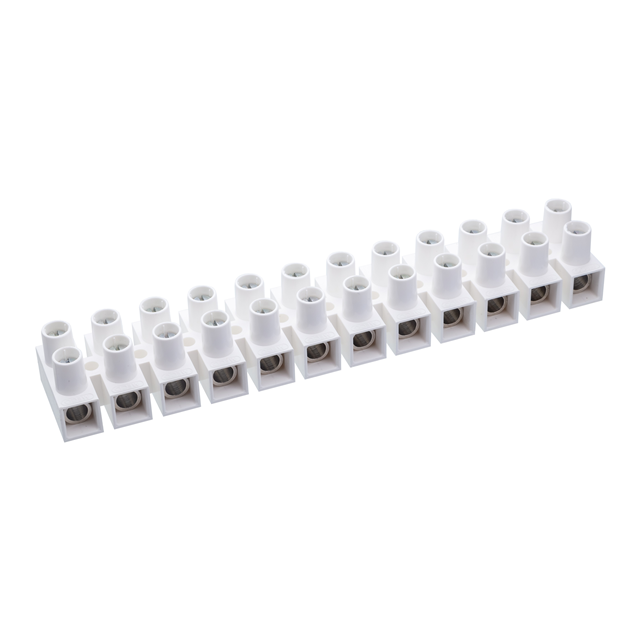

327-HDS/12

Active

WECO Electrical Connectors Inc.

TERMINAL STRIP; SCRW; 12; 14-6 A

Search across all available documentation for this part.

Active

WECO Electrical Connectors Inc.

TERMINAL STRIP; SCRW; 12; 14-6 A

Technical Specifications

Parameters and characteristics for this part

Specification	327-HDS/12

Barrier Type	Enclosed
Bottom Termination	Closed
Color	White
Current Rating (Amps)	80 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	12
Number of Rows	2
Operating Temperature	105 C
Pitch [x]	14.5 mm
Pitch [x]	0.571 in
Terminal Block Type	Eurostyle Terminal Strip
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	14 AWG
Wire Gauge [Min]	4 AWG

Part	Voltage Rating	Number of Circuits	Number of Rows	Bottom Termination	Barrier Type	Material - Insulation	Operating Temperature	Material Flammability Rating	Terminal Screw Material	Current Rating (Amps)	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Screw Finish	Mounting Type	Top Termination	Color	Terminal Block Type
WECO Electrical Connectors Inc. 327-HDS/12	300 VDC	12	2	Closed	Enclosed	Nylon Polyamide (PA)	105 C	UL94 V-0	Steel	80 A	14.5 mm	0.571 in	4 AWG	14 AWG	Zinc	Chassis Panel	Screws	White	Eurostyle Terminal Strip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Circuit 0.571" (14.50mm) Eurostyle Terminal Strip Connector Screws
