0190050030

Active

Molex

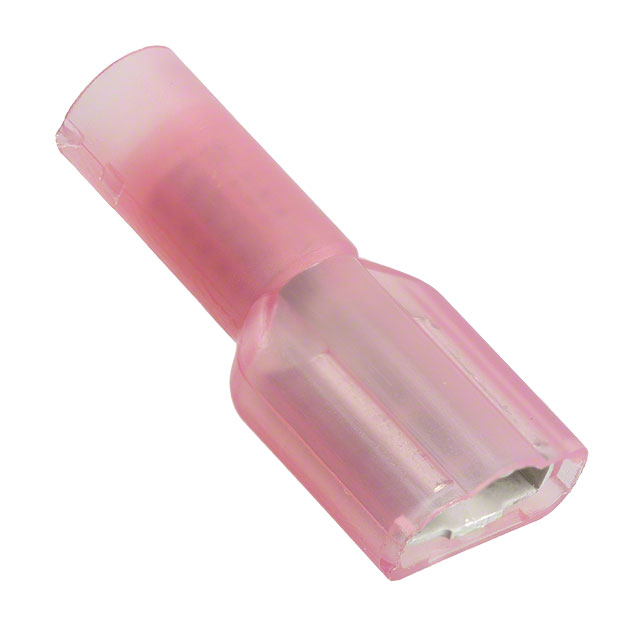

CONN QC RCPT 18-22AWG 0.250

Search across all available documentation for this part.

Active

Molex

CONN QC RCPT 18-22AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	0190050030

Color	Red
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter [diameter]	0.16 in
Insulation Diameter [diameter]	4.06 mm
Length - Overall [x]	0.89 in
Length - Overall [x]	22.61 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Tab Thickness	Tab Thickness	Mounting Type	Termination	Gender	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Terminal Type	Tab Width	Tab Width	Color	Length - Overall [x]	Length - Overall [x]
Molex 0190050003	0.032 in	0.81 mm	Free Hanging (In-Line)	Crimp	Female	0.16 in	4.06 mm	Brass	Tin	22 AWG	17.5 AWG	Fully Insulated	Standard	6.35 mm	0.25 in	Red	0.89 in	22.61 mm
Molex 0190050004	0.032 in	0.81 mm	Free Hanging (In-Line)	Crimp	Female	0.16 in	4.06 mm	Brass	Tin	22 AWG	17.5 AWG	Fully Insulated	Standard	6.35 mm	0.25 in	Red	0.89 in	22.61 mm
Molex 0190050016	0.032 in	0.81 mm	Free Hanging (In-Line)	Crimp	Female	0.27 in	6.86 mm	Brass	Tin	12 AWG	10 AWG	Fully Insulated	Standard	6.35 mm	0.25 in	Yellow	1.04 "	26.42 mm
Molex 0190050030	0.032 in	0.81 mm	Free Hanging (In-Line)	Crimp	Female	0.16 in	4.06 mm	Brass	Tin	22 AWG	17.5 AWG	Fully Insulated	Standard	6.35 mm	0.25 in	Red	0.89 in	22.61 mm
Molex 0190050009	0.032 in	0.81 mm	Free Hanging (In-Line)	Crimp	Female	0.16 in	4.06 mm	Brass	Tin			Fully Insulated	Standard	6.35 mm	0.25 in	Blue	0.89 in	22.61 mm
Molex 0190050008	0.032 in	0.81 mm	Free Hanging (In-Line)	Crimp	Female	0.16 in	4.06 mm	Brass	Tin			Fully Insulated	Standard	6.35 mm	0.25 in	Blue	0.89 in	22.61 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.17

General part information

0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
