GS-115-0047
ActiveCW Industries

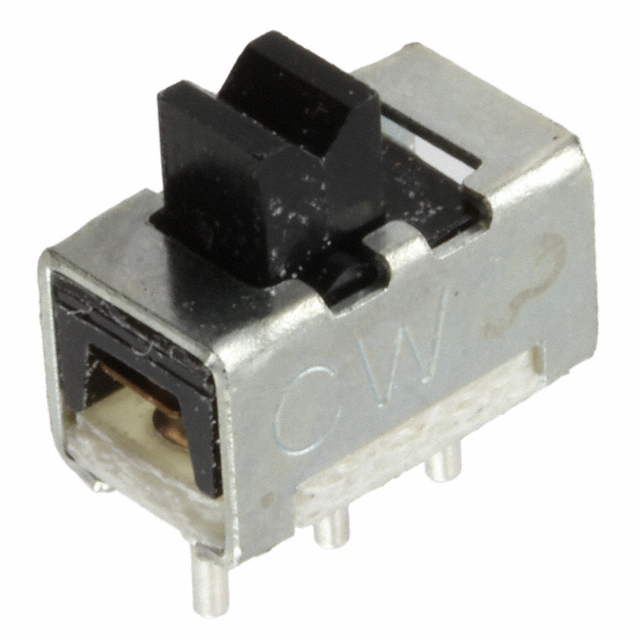

SWITCH SLIDE SPDT 500MA 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GS-115-0047
ActiveCW Industries
SWITCH SLIDE SPDT 500MA 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GS-115-0047 |
|---|---|
| Actuator Length [x] | 3.18 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Standard |
| Circuit | SPDT |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 500 mA |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 104 °C |
| Operating Temperature [Min] | -10 °C |
| Switch Function | On-On |
| Switch Travel | 2.67 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
GS-115 Series
| Part | Voltage Rating - AC | Voltage Rating - DC | Contact Finish | Current Rating (Amps) | Mechanical Life | Termination Style | Actuator Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Travel | Switch Function | Contact Material | Circuit | Actuator Type | Contact Timing | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | 125 V | 125 VDC | Silver | 500 mA | 10000 Steps | PC Pin | Nylon 6/6 Polyamide (PA66) | Through Hole | 104 °C | -10 °C | 2.67 mm | On-On | Copper Alloy | SPDT | Standard | Not Specified | 3.56 mm |
CW Industries | 125 V | 125 VDC | Silver | 500 mA | 10000 Steps | Press-Fit | Nylon 6/6 Polyamide (PA66) | Through Hole | 104 °C | -10 °C | 2.67 mm | On-On | Copper Alloy | SPDT | Standard | Not Specified | 3.18 mm |
CW Industries | 125 V | 125 VDC | Silver | 500 mA | 10000 Steps | PC Pin | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 2.67 mm | On-On | Copper Alloy | SPDT | Standard | Not Specified | 3.56 mm | |
CW Industries | 125 V | 125 VDC | Silver | 500 mA | 10000 Steps | PC Pin | Nylon 6/6 Polyamide (PA66) | Through Hole | 104 °C | -10 °C | 2.67 mm | On-On | Copper Alloy | SPDT | Standard | Not Specified | 4.29 mm |
CW Industries | 125 V | 125 VDC | Silver | 500 mA | 10000 Steps | Press-Fit | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 2.67 mm | On-On | Copper Alloy | SPDT | Standard | Not Specified | 3.18 mm | |
CW Industries | 125 V | 125 VDC | Silver | 500 mA | 10000 Steps | Solder Lug | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 2.67 mm | On-On | Copper Alloy | SPDT | Standard | Not Specified | 3.18 mm | |
CW Industries | 125 V | 125 VDC | Silver | 500 mA | 10000 Steps | PC Pin | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 2.67 mm | On-On | Copper Alloy | SPDT | Standard | Not Specified | 3.56 mm | |
CW Industries | 125 V | 125 VDC | Silver | 500 mA | 10000 Steps | PC Pin | Nylon 6/6 Polyamide (PA66) | Through Hole | 104 °C | -10 °C | 2.67 mm | On-On | Copper Alloy | SPDT | Standard | Not Specified | 3.18 mm |
CW Industries | 125 V | 125 VDC | Silver | 500 mA | 10000 Steps | Press-Fit | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 2.67 mm | On-On | Copper Alloy | SPDT | Standard | Not Specified | 4.75 mm | |
CW Industries | 125 V | 125 VDC | Silver | 500 mA | 10000 Steps | PC Pin | Nylon 6/6 Polyamide (PA66) | Through Hole | 104 °C | -10 °C | 2.67 mm | On-On | Copper Alloy | SPDT | Standard | Not Specified | 3.18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.41 | |
| 10 | $ 2.77 | |||
| 25 | $ 2.54 | |||
| 100 | $ 2.24 | |||
| 250 | $ 2.05 | |||
| 500 | $ 1.92 | |||
| 1000 | $ 1.79 | |||
| 2500 | $ 1.64 | |||
| 5000 | $ 1.53 | |||
Description
General part information
GS-115 Series
Slide Switch SPDT Through Hole
