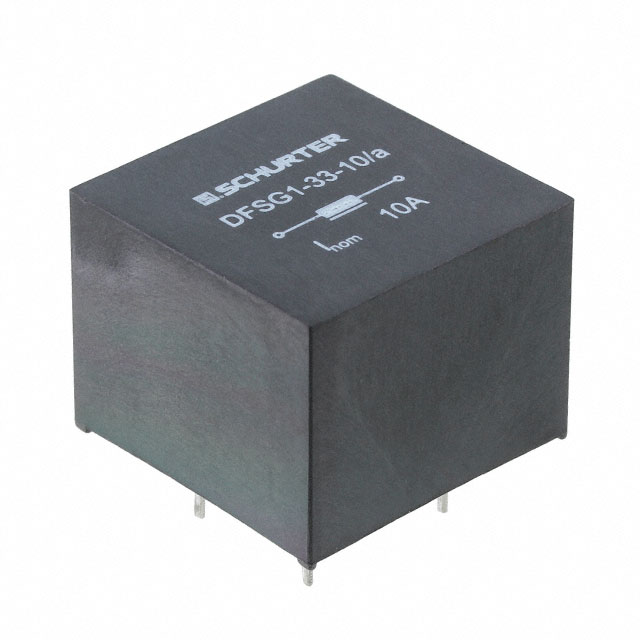

DFSG-33-0002

Active

SCHURTER Inc.

FIXED IND 10A 30 MOHM TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

FIXED IND 10A 30 MOHM TH

Technical Specifications

Parameters and characteristics for this part

Specification	DFSG-33-0002

Current Rating (Amps)	10 A
DC Resistance (DCR)	30 mOhm
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Radial, Horizontal - Corner Terminals
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.299 in
Size / Dimension [y]	1.299 in
Size / Dimension [y]	33 mm

Part	Current Rating (Amps)	Package / Case	DC Resistance (DCR)	Operating Temperature [custom]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
SCHURTER Inc. DFSG-30-0001	3 A	Radial Horizontal - Corner Terminals	165 mOhm	-25 °C 100 °C	Through Hole	1.181 in	1.181 in	30 mm	30 mm
SCHURTER Inc. DFSG-33-0002	10 A	Radial Horizontal - Corner Terminals	30 mOhm	-25 °C 100 °C	Through Hole	1.299 in	1.299 in	33 mm		33 mm
SCHURTER Inc. DFSG-20-0002	1.5 A	Radial Horizontal - Corner Terminals	450 mOhm	-25 °C 100 °C	Through Hole			0.709 "	0.709 in	18 mm	18 mm
SCHURTER Inc. DFSG-20-0001	800 mA	Radial Horizontal - Corner Terminals	1.3 Ohm	-25 °C 100 °C	Through Hole			0.709 "	0.709 in	18 mm	18 mm
SCHURTER Inc. DFSG-25-0001	2 A	Radial Horizontal - Corner Terminals	260 mOhm	-25 °C 100 °C	Through Hole			0.886 "	0.886 "	22.5 mm	22.5 mm
SCHURTER Inc. DFSG-33-0001	5 A	Radial Horizontal - Corner Terminals	70 mOhm	-25 °C 100 °C	Through Hole	1.299 in	1.299 in	33 mm		33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Inductor 10 A 30mOhm Radial, Horizontal - Corner Terminals
