8282-7PG-513

Active

Conxall/Switchcraft

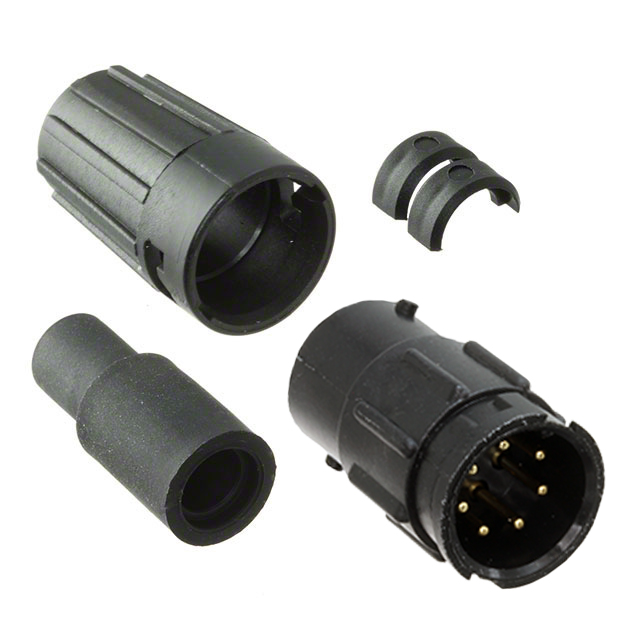

CONN RCPT MALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8282-7PG-513

Active

Conxall/Switchcraft

CONN RCPT MALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8282-7PG-513

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.13 in, 0.15 in
Cable Opening [custom]	3.81 mm, 3.3 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

8282-7PG Series

Part	Contact Material	Connector Type	Ingress Protection	Fastening Type	Features	Number of Positions	Current Rating (Amps)	Voltage Rating	Primary Material	Backshell Material, Plating	Mounting Type	Color	Contact Finish - Mating	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Applications	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 8282-7PG-3DC	Brass	Male Pins Receptacle	Weathertight	Bayonet Lock	Backshell	7	Varies by Wire Gauge	600 V	Plastic	Nylon Polyamide (PA)	Free Hanging (In-Line)	Black	Gold	Unshielded	-40 °C	115 °C	Keyed	Automotive Communication Systems Instrumentation
Conxall/Switchcraft 8282-7PG-318	Brass	Male Pins Receptacle	Weathertight	Bayonet Lock	Backshell	7	Varies by Wire Gauge	600 V	Plastic	Nylon Polyamide (PA)	Free Hanging (In-Line)	Black	Gold	Unshielded	-40 °C	115 °C	Keyed	Automotive Communication Systems Instrumentation	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 8282-7PG-513	Brass	Male Pins Receptacle	Weathertight	Bayonet Lock	Backshell	7	Varies by Wire Gauge	600 V	Plastic	Nylon Polyamide (PA)	Free Hanging (In-Line)	Black	Gold	Unshielded	-40 °C	115 °C	Keyed	Automotive Communication Systems Instrumentation					0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 8282-7PG-311	Brass	Male Pins Receptacle	Weathertight	Bayonet Lock	Backshell	7	Varies by Wire Gauge	600 V	Plastic	Nylon Polyamide (PA)	Free Hanging (In-Line)	Black	Gold	Unshielded	-40 °C	115 °C	Keyed	Automotive Communication Systems Instrumentation							2.29 mm	0.09 in 0.14 in	3.56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.98
		10	$ 10.62

Description

General part information

8282-7PG Series

7 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources
