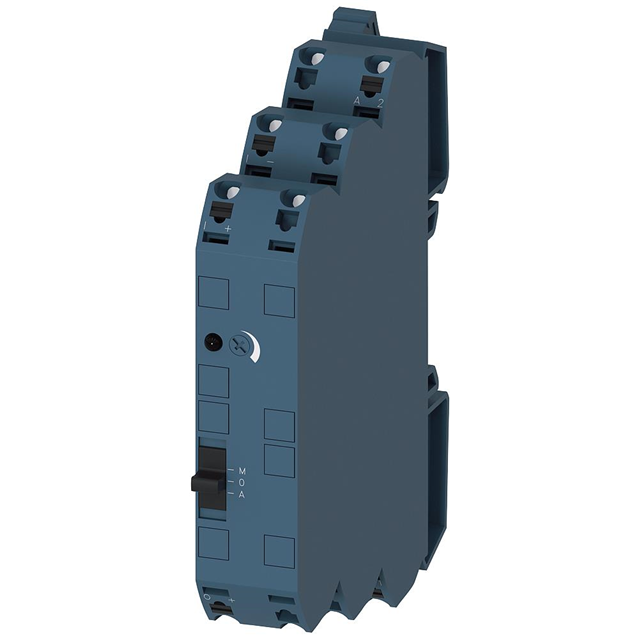

3RS70252FE00

Active

Siemens

SWTCHBL MULTI-RANGE CNVRTR, 24VA

Search across all available documentation for this part.

Active

Siemens

SWTCHBL MULTI-RANGE CNVRTR, 24VA

Technical Specifications

Parameters and characteristics for this part

Specification	3RS70252FE00

Input Range (Additional)	100 Ohm, 330 k Ohm
Input Range (Current, Voltage) [custom]	0 mA, 20 mA
Input Range (Current, Voltage) [custom]	0 V, 10 V
Input Type	Resistance, Current, Voltage
Isolation	50 V
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Output Range [Max]	20 mA, 10 VDC
Output Range [Min]	0 mA, 0 VDC
Output Type	Current, Voltage
Termination Style	Spring Terminal
Type	Signal Conditioner
Voltage - Supply	24 VAC

Part	Output Type	Input Range (Current, Voltage) [custom]	Input Range (Current, Voltage) [custom]	Voltage - Supply	Operating Temperature [Min]	Operating Temperature [Max]	Isolation	Mounting Type	Type	Output Range [Min]	Output Range [Max]	Input Type	Input Range (Additional)	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]
Siemens 3RS70251FE00	Current Voltage	0 mA 20 mA	0 V 10 V	24 VAC	-25 °C	60 °C	50 V	DIN Rail	Isolation Amplifier	0 mA 0 VDC	10 VDC 20 mA	Current Resistance Voltage	100 Ohm 330 k Ohm	Screw Terminal
Siemens 3RS70252FE00	Current Voltage	0 mA 20 mA	0 V 10 V	24 VAC	-25 °C	60 °C	50 V	DIN Rail	Signal Conditioner	0 mA 0 VDC	10 VDC 20 mA	Current Resistance Voltage	100 Ohm 330 k Ohm	Spring Terminal
Siemens 3RS70251FW00	Current Voltage	0 mA 20 mA	0 V 10 V		-25 °C	60 °C	300 V	DIN Rail	Signal Conditioner	0 mA 0 VDC	10 VDC 20 mA	Current Resistance Voltage	100 Ohm 330 k Ohm	Screw Terminal	24 VAC	240 VAC
Siemens 3RS70252FW00	Current Voltage	0 mA 20 mA	0 V 10 V		-25 °C	60 °C	300 V	DIN Rail	Isolation Amplifier	0 mA 0 VDC	10 VDC 20 mA	Current Resistance Voltage	100 Ohm 330 k Ohm	Spring Terminal	24 VAC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 447.79

General part information

SWTCHBL MULTI-RANGE CNVRTR, 24VA
