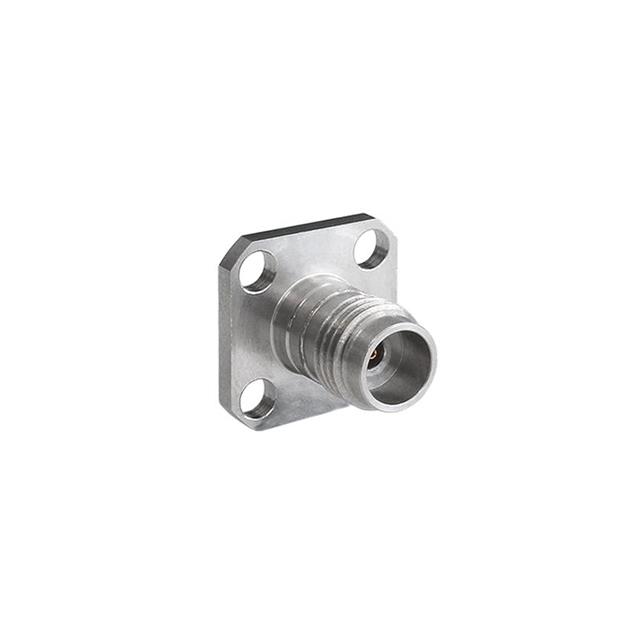

RF185A4JCCA

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, 1.85MM COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Search across all available documentation for this part.

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, 1.85MM COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Feature	Housing Color	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Shield Termination	Center Contact Material	Mating Cycles	Connector Style	Connector Type	Number of Ports	Impedance	Contact Termination	Voltage Rating	Dielectric Material
BULGIN LIMITED RF185A4JCCA	Flange	Silver	65 GHz	85 °C	-40 °C	Stainless Steel	Screw	Beryllium Copper	500	1.85 mm	Female Socket Jack	1	50 Ohms	Compression	150 VDC	Polyetherimide (PEI)
BULGIN LIMITED RF185A4JCCB	Flange	Silver	65 GHz	85 °C	-40 °C	Stainless Steel	Screw	Beryllium Copper	500	1.85 mm	Female Socket Jack	1	50 Ohms	Compression	150 VDC	Polyetherimide (PEI)
BULGIN LIMITED RF185A4PCCA	Flange	Silver	65 GHz	85 °C	-40 °C	Stainless Steel	Screw	Beryllium Copper	500	1.85 mm	Male Pin Plug	1	50 Ohms	Compression	150 VDC	Polyetherimide (PEI)
BULGIN LIMITED RF185A2JEGA	Flange	Silver	65 GHz	85 °C	-40 °C	Stainless Steel	Screw	Beryllium Copper	500	1.85 mm	Female Socket Jack	1	50 Ohms	Compression	150 VDC	Polyetherimide (PEI)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 145.44

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Panel Mount Compression
