1411181

Active

Phoenix Contact

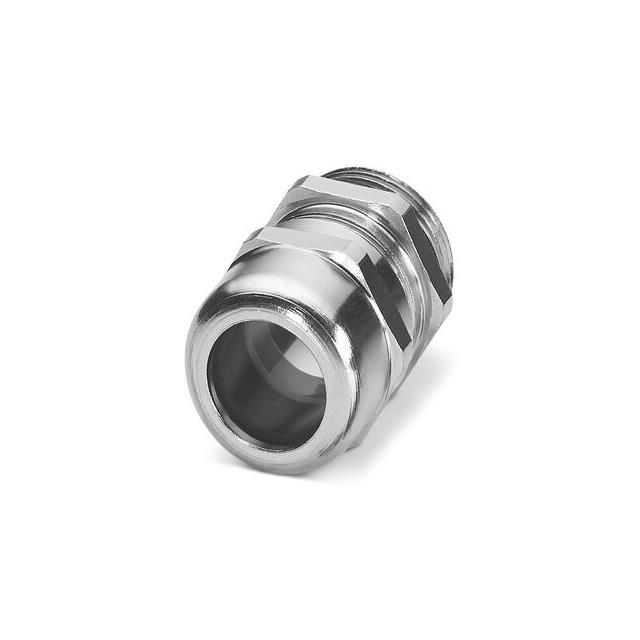

CABLE GLAND 34-44MM PG48 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 34-44MM PG48 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1411181

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	44 mm
Outside Cable Diameter (Max) [Max]	1.732 in
Outside Cable Diameter (Min) [Min] [diameter]	1.339 in
Outside Cable Diameter (Min) [Min] [diameter]	34 mm
Thread Length	14 mm
Thread Length	0.551 in
Thread Size	PG48
Type	Cable Gland

Part	Color	Material	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Includes	Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length
Phoenix Contact 1411150	Gray	Polyamide (PA) Nylon	44 mm	1.732 in	Seal	Cable Gland	100 °C	-40 °C	IP66/IP68	PG48	1.339 in	34 mm	14 mm	0.551 in
Phoenix Contact 1424494	Gray	Polyamide (PA) Nylon	44 mm	1.732 in	Seal	Cable Gland	100 °C	-40 °C	IP68 - Dust Tight Waterproof	PG48	1.339 in	34 mm	14 mm	0.551 in
Phoenix Contact 1424504	Black	Polyamide (PA) Nylon	44 mm	1.732 in	Seal	Cable Gland	100 °C	-40 °C	IP68 - Dust Tight Waterproof	PG48	1.339 in	34 mm	14 mm	0.551 in
Phoenix Contact 1411181	Silver	Brass Nickel Plated	44 mm	1.732 in	O-Ring Seal	Cable Gland	100 °C	-40 °C	IP66 IP68 IP69	PG48	1.339 in	34 mm	14 mm	0.551 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.37

General part information

Cable Gland Brass, Nickel Plated PG48 Silver

Technical documentation and resources
