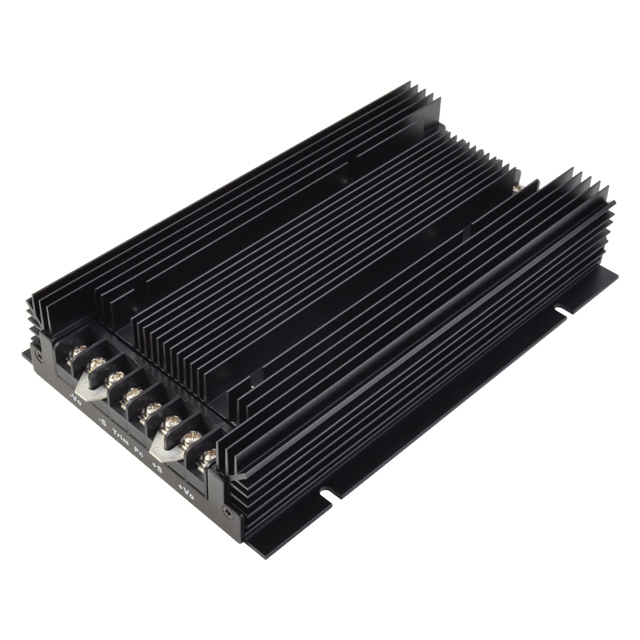

VFK600-D48-S24
ActiveCUI Inc.
DC/DC CONVERTER 24V 600W
Deep-Dive with AI
Search across all available documentation for this part.
VFK600-D48-S24
ActiveCUI Inc.
DC/DC CONVERTER 24V 600W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VFK600-D48-S24 |
|---|---|
| Current - Output (Max) [Max] | 25 A |
| Efficiency | 91 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 199.1 mm |
| Size / Dimension [x] | 7.84 " |
| Size / Dimension [y] | 4.99 in |
| Size / Dimension [y] | 126.8 mm |
| Size / Dimension [z] | 1.54 " |
| Size / Dimension [z] | 39.1 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Output 1 | 24 V |
VFK600 Series
| Part | Voltage - Input (Max) [Max] | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Efficiency | Number of Outputs | Power (Watts) | Voltage - Output 1 | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | DC Voltage - Input (Max) [Max] | DC Voltage - Input (Min) [Min] | Input Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | 75 V | Chassis Mount | 199.1 mm | 7.84 " | 4.99 in | 1.54 " | 126.8 mm | 39.1 mm | 100 °C | -40 °C | Enclosed | 92 % | 1 | 600 W | 48 V | 12.5 A | 36 V | ||||
CUI Inc. | 198.9 mm | 7.83 in | 5 " | 2.11 " | 127 mm | 53.6 mm | 85 °C | -40 °C | 91 % | 1 | 608 W | 32 V | 19 A | 36 V | 18 V | DC | CE | ||||
CUI Inc. | 198.9 mm | 7.83 in | 5 " | 2.11 " | 127 mm | 53.6 mm | 85 °C | -40 °C | 92 % | 1 | 600 W | 48 V | 12.5 A | 75 V | 36 V | DC | CE | ||||
CUI Inc. | 75 V | Chassis Mount | 199.1 mm | 7.84 " | 4.99 in | 1.54 " | 126.8 mm | 39.1 mm | 100 °C | -40 °C | Enclosed | 90 % | 1 | 600 W | 12 V | 50 A | 36 V | ||||
CUI Inc. | 36 V | Chassis Mount | 199.1 mm | 7.84 " | 4.99 in | 1.54 " | 126.8 mm | 39.1 mm | 100 °C | -40 °C | Enclosed | 90 % | 1 | 600 W | 28 V | 21.5 A | 18 V | ||||
CUI Inc. | 198.9 mm | 7.83 in | 5 " | 2.11 " | 127 mm | 53.6 mm | 85 °C | -40 °C | 89 % | 1 | 600 W | 12 V | 50 A | 36 V | 18 V | DC | CE | ||||
CUI Inc. | 198.9 mm | 7.83 in | 5 " | 2.11 " | 127 mm | 53.6 mm | 85 °C | -40 °C | 91 % | 1 | 700 W | 28 V | 25 A | 75 V | 36 V | DC | CE | ||||
CUI Inc. | 75 V | Chassis Mount | 199.1 mm | 7.84 " | 4.99 in | 1.54 " | 126.8 mm | 39.1 mm | 100 °C | -40 °C | Enclosed | 91 % | 1 | 700 W | 28 V | 25 A | 36 V | ||||
CUI Inc. | 198.9 mm | 7.83 in | 5 " | 2.11 " | 127 mm | 53.6 mm | 85 °C | -40 °C | 92 % | 1 | 608 W | 32 V | 19 A | 75 V | 36 V | DC | CE | ||||
CUI Inc. | 75 V | Chassis Mount | 199.1 mm | 7.84 " | 4.99 in | 1.54 " | 126.8 mm | 39.1 mm | 100 °C | -40 °C | Enclosed | 91 % | 1 | 600 W | 24 V | 25 A | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 477.12 | |
| 5 | $ 461.21 | |||
| 12 | $ 453.26 | |||
Description
General part information
VFK600 Series
Enclosed DC DC Converter 1 Output 24V 25A 75V Input
Documents
Technical documentation and resources
No documents available
