51-195.022D

Active

EAO

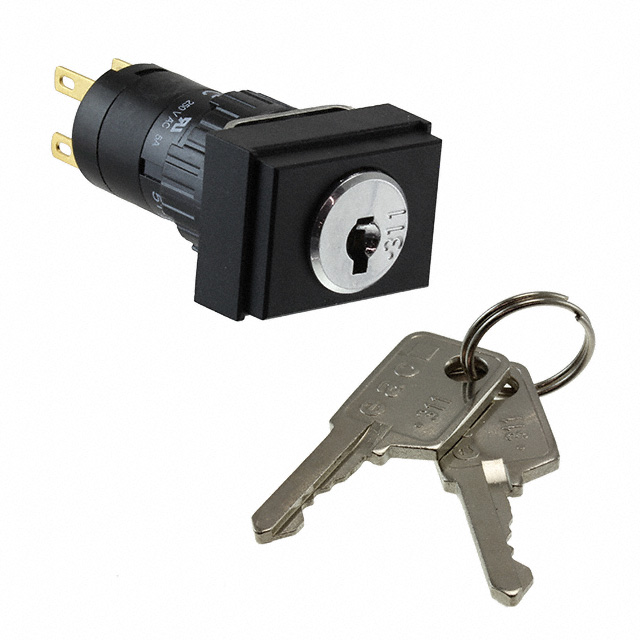

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-195.022D

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	DPST-NO/NC
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange	36 mm
Features	IP65
Key Removable Positions	All
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	250 V

Part	Termination Style	Termination Style	Termination Style	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Features	Contact Timing	Switch Function	Number of Positions	Depth Behind Flange	Current Rating (Amps)	Key Removable Positions	Angle of Throw	Operating Temperature [Max]	Operating Temperature [Min]
EAO 51-195.022D	0.11 in	Quick Connect Solder	2.8 mm	Flat Key	DPST-NO/NC	16 mm	250 V	IP65	Not Specified	Off-On On-Off	2	36 mm	5 A	All	90 °	55 °C	-25 °C
EAO 51-195.025D		Solder Lug		Flat Key	DPST-NO/NC	16 mm	250 V	IP65	Not Specified	Off-On On-Off	2	26.5 mm	5 A	All	90 °	55 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
