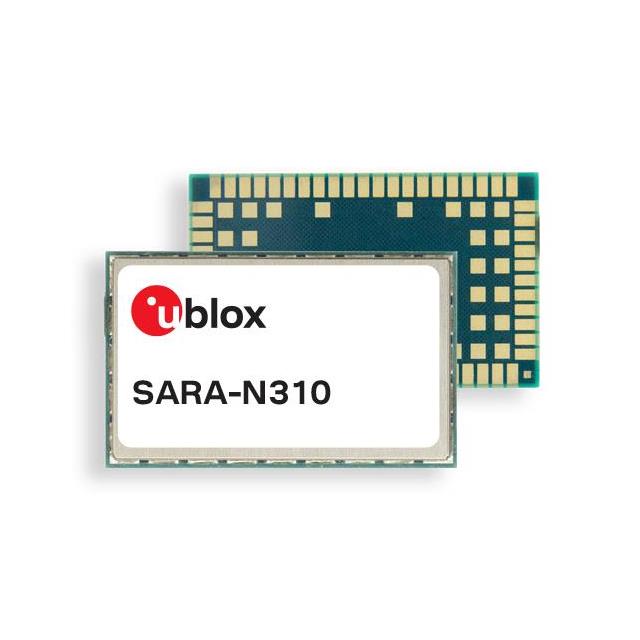

SARA-N310-00X
Activeu-blox
RF TXRX MOD BT CELLSMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SARA-N310-00X
Activeu-blox
RF TXRX MOD BT CELLSMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SARA-N310-00X |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 23 mA |
| Current - Transmitting [Max] | 275 mA |
| Current - Transmitting [Min] | 45 mA |
| Data Rate | 57.6 kBaud |
| Frequency | 1800 MHz, 900 MHz, 800 MHz, 850 MHz, 700 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 96-SMD Module |
| Power - Output | 23 dBmW |
| Protocol | HSUPA, LTE, Class 3, CDMA, Bluetooth v4.2 + EDR, GSM |
| RF Family/Standard | Bluetooth, Cellular |
| Sensitivity | -140 dBm |
| Serial Interfaces | UART, I2C, GPIO, USB, SPI |
| Voltage - Supply [Max] | 4.2 V |
| Voltage - Supply [Min] | 2.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 23.82 | |
| 10 | $ 17.86 | |||
| 50 | $ 14.27 | |||
| 100 | $ 13.19 | |||
| Digi-Reel® | 1 | $ 23.82 | ||
| 10 | $ 17.86 | |||
| 50 | $ 14.27 | |||
| 100 | $ 13.19 | |||
| Tape & Reel (TR) | 250 | $ 12.41 | ||
Description
General part information
SARA-N310 Series
Bluetooth, Cellular Bluetooth v4.2 + EDR, CDMA, Class 3, GSM, HSUPA, LTE Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz Antenna Not Included Surface Mount
