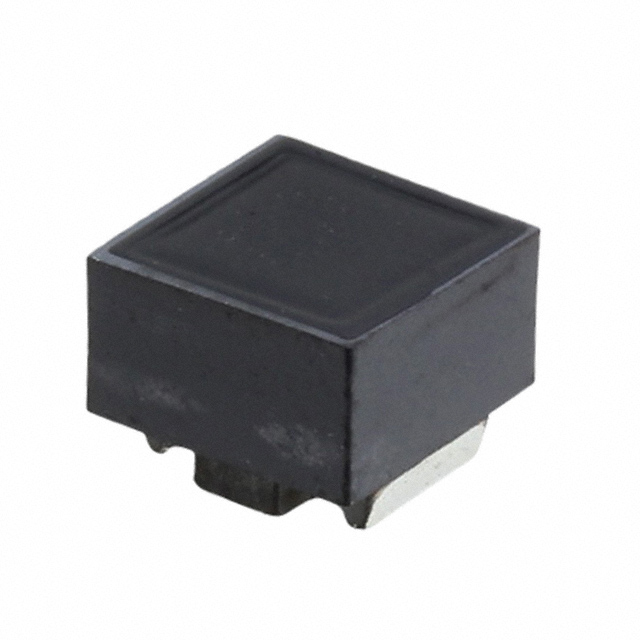

LQH66SN3R3M03L

Active

Murata Power Solutions Inc.

FIXED IND 3.3UH 2.6A 30.8MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStandard Land Pattern Dimensions Datasheet

LQH66SN3R3M03L

Active

Murata Power Solutions Inc.

FIXED IND 3.3UH 2.6A 30.8MOHM SM

Deep-Dive with AI

DocumentsStandard Land Pattern Dimensions Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQH66SN3R3M03L

Current Rating (Amps)	2.6 A
Frequency - Self Resonant	40 MHz
Height - Seated (Max) [Max] [z]	0.197 in
Height - Seated (Max) [Max] [z]	5 mm
Inductance	3.3 µH
Inductance Frequency - Test	1 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	6.3 mm
Size / Dimension [x]	0.248 in
Size / Dimension [y]	0.248 in
Size / Dimension [y]	6.3 mm
Supplier Device Package	6363
Supplier Device Package	2525
Tolerance	20 %
Type	Wirewound, Drum Core

LQH66SN Series

Part	Current Rating (Amps)	Inductance Frequency - Test	Inductance	Mounting Type	Package / Case	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Supplier Device Package	Supplier Device Package	Type	Tolerance	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR)
Murata Power Solutions Inc. LQH66SN2R2M03L	3.3 A	1 MHz	2.2 µH	Surface Mount	Nonstandard	Shielded	-40 °C	80 C	0.197 in	5 mm	26.6 mOhm	80 MHz	6363	2525	Drum Core Wirewound	20 %	Ferrite	6.3 mm	0.248 in	0.248 in	6.3 mm
Murata Power Solutions Inc. LQH66SN1R0M03L	4.7 A	1 MHz	1 µH	Surface Mount	Nonstandard	Shielded	-40 °C	80 C	0.197 in	5 mm	18.2 mOhm	150 MHz	6363	2525	Drum Core Wirewound	20 %	Ferrite	6.3 mm	0.248 in	0.248 in	6.3 mm
Murata Power Solutions Inc. LQH66SN6R8M03L	1.8 A	1 MHz	6.8 µH	Surface Mount	Nonstandard	Shielded	-40 °C	80 C	0.197 in	5 mm	40.6 mOhm	25 MHz	6363	2525	Drum Core Wirewound	20 %	Ferrite	6.3 mm	0.248 in	0.248 in	6.3 mm
Murata Power Solutions Inc. LQH66SN222M03L	100 mA	10 kHz	2.2 mH	Surface Mount	Nonstandard	Shielded	-40 °C	80 C	0.197 in	5 mm	13.16 Ohm	1.2 MHz			Drum Core Wirewound	20 %	Ferrite	6.3 mm	0.248 in	0.248 in	6.3 mm
Murata Power Solutions Inc. LQH66SN3R3M03L	2.6 A	1 MHz	3.3 µH	Surface Mount	Nonstandard	Shielded	-40 °C	80 C	0.197 in	5 mm		40 MHz	6363	2525	Drum Core Wirewound	20 %	Ferrite	6.3 mm	0.248 in	0.248 in	6.3 mm
Murata Power Solutions Inc. LQH66SN100M03L	1.6 A	1 MHz	10 µH	Surface Mount	Nonstandard	Shielded	-40 °C	80 C	0.197 in	5 mm		20 MHz	6363	2525	Drum Core Wirewound	20 %	Ferrite	6.3 mm	0.248 in	0.248 in	6.3 mm
Murata Power Solutions Inc. LQH66SN4R7M03L	2.2 A	1 MHz	4.7 ÁH	Surface Mount	Nonstandard	Shielded	-40 °C	80 C	0.197 in	5 mm	35 mOhm	30 MHz	6363	2525	Drum Core Wirewound	20 %	Ferrite	6.3 mm	0.248 in	0.248 in	6.3 mm
Murata Power Solutions Inc. LQH66SN331M03L	0.28 A	100 kHz	330 µH	Surface Mount	Nonstandard	Shielded	-40 °C	80 C	0.197 in	5 mm	2.52 Ohm		6363	2525	Drum Core Wirewound	20 %	Ferrite	6.3 mm	0.248 in	0.248 in	6.3 mm
Murata Power Solutions Inc. LQH66SN150M03L	1.3 A	1 MHz	15 µH	Surface Mount	Nonstandard	Shielded	-40 °C	80 C	0.197 in	5 mm	96.6 mOhm	17 MHz	6363	2525	Drum Core Wirewound	20 %	Ferrite	6.3 mm	0.248 in	0.248 in	6.3 mm
Murata Power Solutions Inc. LQH66SN1R5M03L	3.8 A	1 MHz	1.5 µH	Surface Mount	Nonstandard	Shielded	-40 °C	80 C	0.197 in	5 mm		110 MHz	6363	2525	Drum Core Wirewound	20 %	Ferrite	6.3 mm	0.248 in	0.248 in	6.3 mm	22.4 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.28
		10	$ 1.94
		25	$ 1.79
		50	$ 1.60
		100	$ 1.33
	Digi-Reel®	1	$ 2.28
		10	$ 1.94
		25	$ 1.79
		50	$ 1.60
		100	$ 1.33
	Tape & Reel (TR)	350	$ 1.29
		700	$ 1.22
		1050	$ 1.14
		2450	$ 1.10
		8750	$ 1.07

Description

General part information

LQH66SN Series

3.3 µH Shielded Drum Core, Wirewound Inductor 2.6 A 30.8mOhm Max Nonstandard

Documents

Technical documentation and resources

Standard Land Pattern Dimensions

Datasheet
