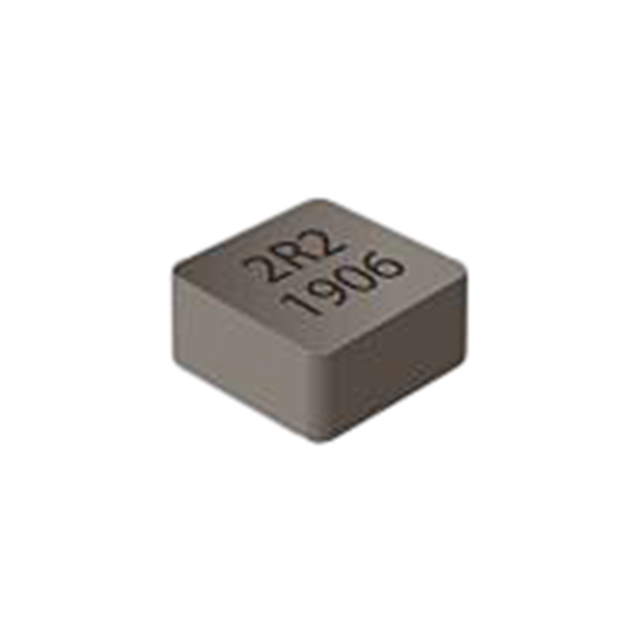

SRP7030CA-4R7M
ActiveBourns Inc.
POWER INDUCTOR (SMD), AEC-Q200, 4.7 ΜH, 9 A, SHIELDED, 13.5 A, SRP7030CA SERIES
Deep-Dive with AI
Search across all available documentation for this part.
SRP7030CA-4R7M
ActiveBourns Inc.
POWER INDUCTOR (SMD), AEC-Q200, 4.7 ΜH, 9 A, SHIELDED, 13.5 A, SRP7030CA SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP7030CA-4R7M |
|---|---|
| Current - Saturation (Isat) | 13.5 A |
| DC Resistance (DCR) | 26.7 mOhm |
| Features | Flat Wire, High Saturation |
| Frequency - Self Resonant | 18 MHz |
| Height - Seated (Max) [Max] [z] | 0.122 " |
| Height - Seated (Max) [Max] [z] | 3.1 mm |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Carbonyl Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.307 in |
| Size / Dimension [x] | 7.8 mm |
| Size / Dimension [y] | 0.299 in |
| Size / Dimension [y] | 7.6 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.97 | |
| 10 | $ 1.67 | |||
| 25 | $ 1.54 | |||
| 50 | $ 1.38 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.11 | |||
| 500 | $ 1.05 | |||
| Digi-Reel® | 1 | $ 1.97 | ||
| 10 | $ 1.67 | |||
| 25 | $ 1.54 | |||
| 50 | $ 1.38 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.11 | |||
| 500 | $ 1.05 | |||
| Tape & Reel (TR) | 1500 | $ 0.98 | ||
| 3000 | $ 0.95 | |||
| 7500 | $ 0.92 | |||
| 10500 | $ 0.87 | |||
| Newark | Each (Supplied on Full Reel) | 1000 | $ 0.99 | |
| 2500 | $ 0.89 | |||
Description
General part information
SRP7030CA Series
4.7 µH Shielded Inductor 9 A 26.7mOhm Max Nonstandard Flat Wire, High Saturation
