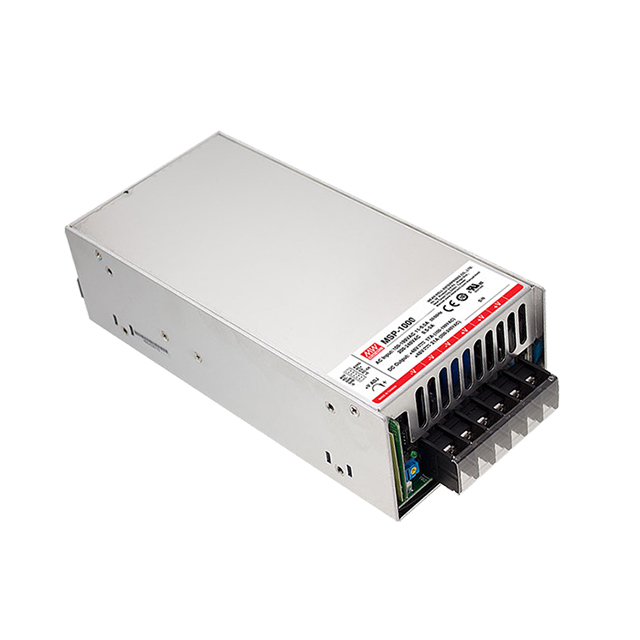

MSP-1000-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 960W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 960W

Technical Specifications

Parameters and characteristics for this part

Specification	MSP-1000-12

Applications	Medical
Approval Agency	cURus, CE, EAC, CB
Efficiency	91.5 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	960 W
Size / Dimension [x]	218 mm
Size / Dimension [x]	8.58 "
Size / Dimension [y]	4.13 in
Size / Dimension [y]	105 mm
Size / Dimension [z]	2.5 in
Size / Dimension [z]	63.5 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	Power (Watts)	Voltage - Output 1	Approval Agency	Applications	Mounting Type	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Features	Voltage - Isolation	Type	Current - Output 1
MEAN WELL USA Inc. MSP-1000-12	960 W	12 V	CB CE cURus EAC	Medical	Chassis Mount	1	90 VAC 127 VDC	264 VAC 370 VDC	4.13 in	218 mm	8.58 "	2.5 in	63.5 mm	105 mm	91.5 %	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	4000 V	Enclosed
MEAN WELL USA Inc. MSP-1000-15	960 W	15 V	CB CE cURus EAC	Medical	Chassis Mount	1	90 VAC 127 VDC	264 VAC 370 VDC	4.13 in	218 mm	8.58 "	2.5 in	63.5 mm	105 mm	92 %	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	4000 V	Enclosed	64 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
