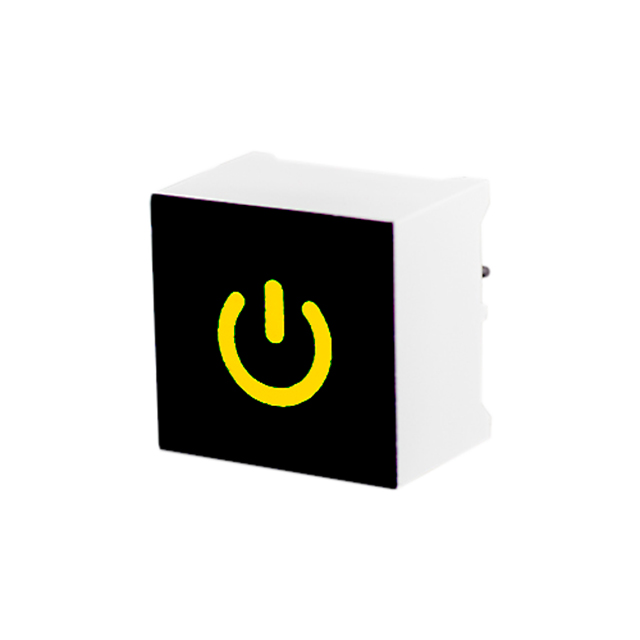

CTHS15CIC07ONOFF

Active

Visual Communications Company - VCC

SWITCH PUSH CAPACITIVE ILLUM SQ

Deep-Dive with AI

Search across all available documentation for this part.

CTHS15CIC07ONOFF

Active

Visual Communications Company - VCC

SWITCH PUSH CAPACITIVE ILLUM SQ

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CTHS15CIC07ONOFF

Actuator Marking	Power Symbol
Actuator Type	Button, Square
Color - Actuator/Cap	Black
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	3.2 VDC
Mounting Type	Through Hole
Switch Function	Off-On
Termination Style	PC Pin
Type	Capacitive, Illuminated

CTHS15 Series

Part	Actuator Marking	Switch Function	Color - Actuator/Cap	Type	Actuator Type	Illumination Type, Color	Termination Style	Illumination Voltage (Nominal)	Mounting Type
Visual Communications Company - VCC CTHS15CIC04ONOFF	Power Symbol	Off-On	Black	Capacitive Illuminated	Button Square	LED White	PC Pin	3.2 VDC	Through Hole
Visual Communications Company - VCC CTHS15CIC05	No Marking	Off-On	Clear	Capacitive Illuminated	Button Square	Green LED	PC Pin	3.2 VDC	Through Hole
Visual Communications Company - VCC CTHS15CIC01ONOFF	Power Symbol	Off-On	Black	Capacitive Illuminated	Button Square	LED Red	PC Pin	3.2 VDC	Through Hole
Visual Communications Company - VCC CTHS15CIC06	No Marking	Off-On	Clear	Capacitive Illuminated	Button Square	Blue LED	PC Pin	3.2 VDC	Through Hole
Visual Communications Company - VCC CTHS15CIC04ARROW	Arrow Right	Off-On	Black	Capacitive Illuminated	Button Square	LED White	PC Pin	3.2 VDC	Through Hole
Visual Communications Company - VCC CTHS15CIC07ONOFF	Power Symbol	Off-On	Black	Capacitive Illuminated	Button Square	LED Yellow	PC Pin	3.2 VDC	Through Hole
Visual Communications Company - VCC CTHS15CIC01ARROW	Arrow Right	Off-On	Black	Capacitive Illuminated	Button Square	LED Red	PC Pin	3.2 VDC	Through Hole
Visual Communications Company - VCC CTHS15CIC01	No Marking	Off-On	Clear	Capacitive Illuminated	Button Square	LED Red	PC Pin	3.2 VDC	Through Hole
Visual Communications Company - VCC CTHS15CIC04ALARM	Alarm Symbol	Off-On	Black	Capacitive Illuminated	Button Square	LED White	PC Pin	3.2 VDC	Through Hole
Visual Communications Company - VCC CTHS15CIC07	No Marking	Off-On	Clear	Capacitive Illuminated	Button Square	LED Yellow	PC Pin	3.2 VDC	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.24
		10	$ 5.92
		100	$ 4.73
		500	$ 4.26
		1000	$ 4.11
		2000	$ 4.03

Description

General part information

CTHS15 Series

Pushbutton Switch Capacitive, Illuminated Through Hole

Documents

Technical documentation and resources

No documents available
