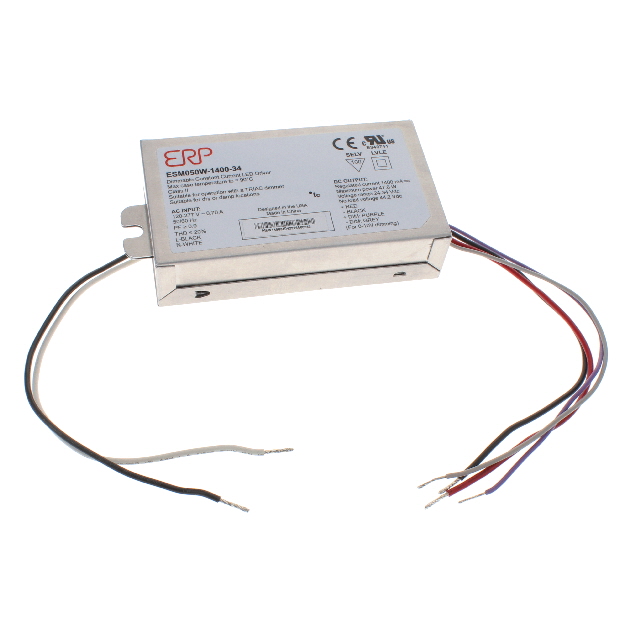

ESM050W-1400-34

Active

ERP Power, LLC

LED DRIVER CC AC/DC 23-34V 1.4A

Search across all available documentation for this part.

Active

ERP Power, LLC

LED DRIVER CC AC/DC 23-34V 1.4A

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Efficiency	Weight	Weight	Type	Power (Watts)	Current - Output (Max) [Max]	Features	Number of Outputs	Topology	Mounting Type	Voltage - Output [Max]	Voltage - Output [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Termination Style	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
ERP Power, LLC ESM050W-1400-34	IP20 NEMA 410	87 %	252 g	0.556 lb	Constant Current	48 W	1.4 A	OCP OTP SCP	1	AC DC Converter	Chassis Mount	34 V	23 V	-30 ░C	90 °C	ELV TRIAC	Wire Leads	277 VAC	CB CE cRUcs cUL FC UL	120 VAC	0.99 in 25.2 mm	4.2 in 106.7 mm	2.37 in 60.3 mm
ERP Power, LLC ESM050W-1050-42	IP20 NEMA 410	87 %	252 g	0.556 lb	Constant Current	44 W	1.05 A	OCP OTP SCP	1	AC DC Converter	Chassis Mount	42 V	28 V	-30 ░C	90 °C	ELV TRIAC	Wire Leads	277 VAC	CB CE cRUcs cUL FC UL	120 VAC	0.99 in 25.2 mm	4.2 in 106.7 mm	2.37 in 60.3 mm
ERP Power, LLC ESM050W-1200-42	IP20 NEMA 410	87 %	252 g	0.556 lb	Constant Current	50 W	1.2 A	OCP OTP SCP	1	AC DC Converter	Chassis Mount	42 V	28 V	-30 ░C	90 °C	ELV TRIAC	Wire Leads	277 VAC	CB CE cRUcs cUL FC UL	120 VAC	0.99 in 25.2 mm	4.2 in 106.7 mm	2.37 in 60.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.4A 23 ~ 34V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources
