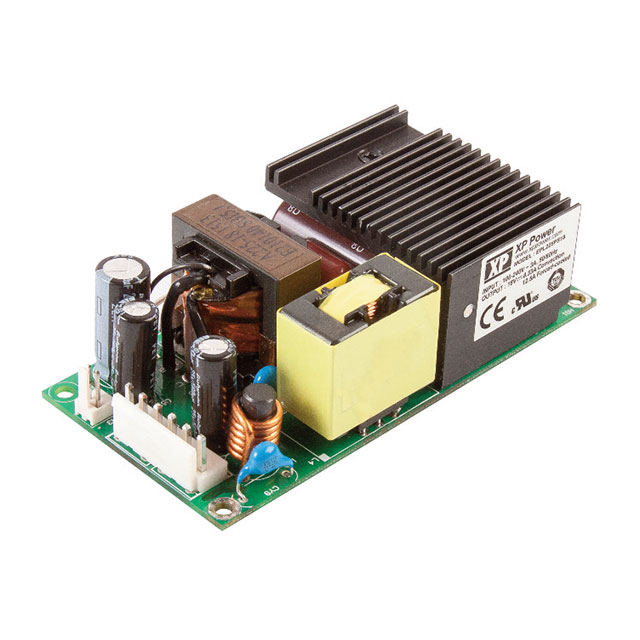

EPL225PS18

Active

XP POWER

AC/DC CONVERTER 18V 150W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 18V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	EPL225PS18

Applications	ITE (Commercial), Medical
Approval Agency	CB, CE, UL
Current - Output 1	8.33 A
Efficiency	93 %
Features	Standby Output, Universal Input, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	225 W
Power (Watts)	150 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	32.3 mm
Size / Dimension [z]	1.26 in
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	18 V

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Type	Power (Watts)	Power (Watts)	Standard Number	Voltage - Isolation	Current - Output 1	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Number of Outputs	Mounting Type	Efficiency
XP POWER EPL225PS36	PFC Standby Output Universal Input	-20 °C	70 °C	36 V	Open Frame	225 W	150 W	62368-1	4000 V	4.16 A	ITE (Commercial) Medical	4 in	32.3 mm	2 in	1.26 in	50.8 mm	101.6 mm	CB CE UL	1	Chassis Mount	93 %
XP POWER EPL225PS18	PFC Standby Output Universal Input	-20 °C	70 °C	18 V	Open Frame	225 W	150 W	62368-1	4000 V	8.33 A	ITE (Commercial) Medical	4 in	32.3 mm	2 in	1.26 in	50.8 mm	101.6 mm	CB CE UL	1	Chassis Mount	93 %
XP POWER EPL225PS15	PFC Standby Output Universal Input	-20 °C	70 °C	15 V	Open Frame	225 W	150 W	62368-1	4000 V	10 A	ITE (Commercial) Medical	4 in	32.3 mm	2 in	1.26 in	50.8 mm	101.6 mm	CB CE UL	1	Chassis Mount	93 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	540	$ 99.46

General part information

Open Frame AC DC Converters 1 Output 18V 85 ~ 264 VAC Input
