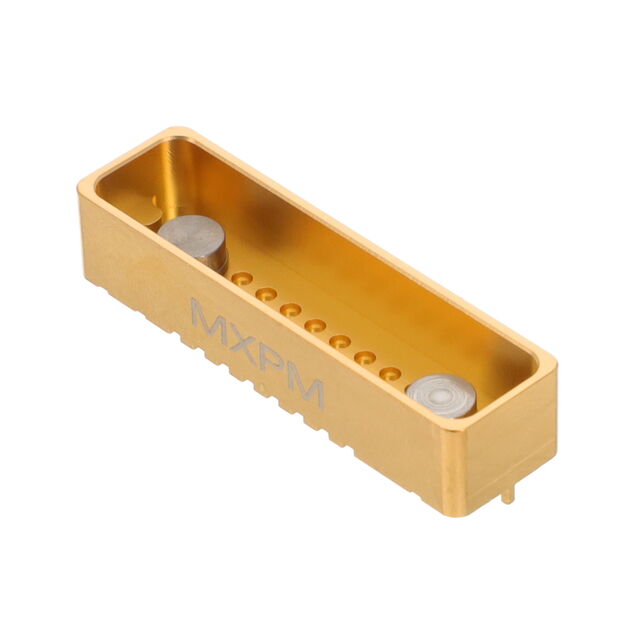

2X8A_82_MXPM-S50-0-1/-11_NE
ActiveHuber+Suhner, Inc.
RF COAX CONN, MXPM, JACK, 50 OHM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
2X8A_82_MXPM-S50-0-1/-11_NE
ActiveHuber+Suhner, Inc.
RF COAX CONN, MXPM, JACK, 50 OHM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2X8A_82_MXPM-S50-0-1/-11_NE |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Connector Style | MXPM |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 70 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports [custom] | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
2X8A_82_MXPM Series
MXPM Connector Jack, Female Socket 50 Ohms Surface Mount Solder
