31_PC35-50-0-1/199_UE
ActiveHuber+Suhner, Inc.

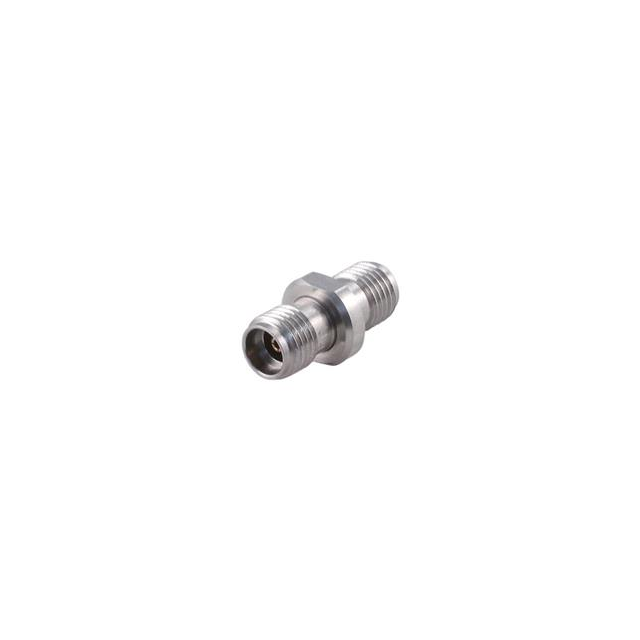

RF ADAPTER, 3.5MM JACK-JACK, 50 OHM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
31_PC35-50-0-1/199_UE
ActiveHuber+Suhner, Inc.
RF ADAPTER, 3.5MM JACK-JACK, 50 OHM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 31_PC35-50-0-1/199_UE |
|---|---|
| Adapter Series [Max] | 3.5 mm |
| Adapter Series [Min] | 3.5 mm |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 3.5mm Jack, Female Socket |
| Convert To (Adapter End) | 3.5mm Jack, Female Socket |
| Dielectric Material | Polystyrene (PS) |
| Frequency - Max [Max] | 33 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
31_PC35-50 Series
Adapter Coaxial Connector 3.5mm Jack, Female Socket To 3.5mm Jack, Female Socket 50 Ohms
