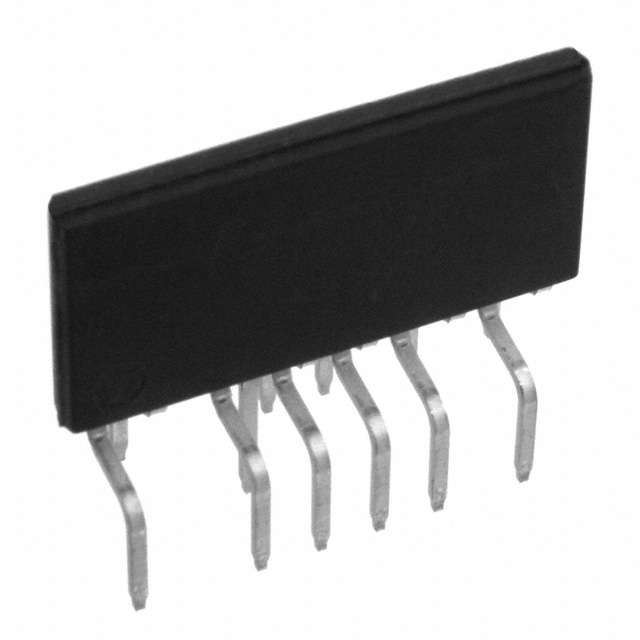

TFS7707H

Active

Power Integrations

IC REG CTRLR MULT TOPOLOGY 7ESIP

Search across all available documentation for this part.

Active

Power Integrations

IC REG CTRLR MULT TOPOLOGY 7ESIP

Technical Specifications

Parameters and characteristics for this part

Specification	TFS7707H

Clock Sync	False
Control Features	Reset, Enable
Duty Cycle (Max) [Max]	63 %
Frequency - Switching	66 kHz, 132 kHz
Function	Step-Down, Step-Up
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive, Isolation Capable
Output Phases	1
Output Type	Transistor Driver
Package / Case	16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Supplier Device Package	eSIP-16F
Synchronous Rectifier	False
Topology	Forward Converter, Flyback
Voltage - Supply (Vcc/Vdd) [Max]	11.5 V

Part	Number of Outputs	Output Configuration	Synchronous Rectifier	Output Phases	Duty Cycle (Max) [Max]	Control Features	Clock Sync	Mounting Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Frequency - Switching	Topology	Supplier Device Package	Output Type	Package / Case
Power Integrations TFS7707H	2	Isolation Capable Positive		1	63 %	Enable Reset		Through Hole	Step-Down Step-Up	150 °C	-40 °C	11.5 V	66 kHz 132 kHz	Flyback Forward Converter	eSIP-16F	Transistor Driver	16-SSIP 12 Leads Exposed Pad Formed Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2400	$ 3.77

General part information

Flyback, Forward Converter Regulator Positive, Isolation Capable Output Step-Up, Step-Down DC-DC Controller IC eSIP-16F
